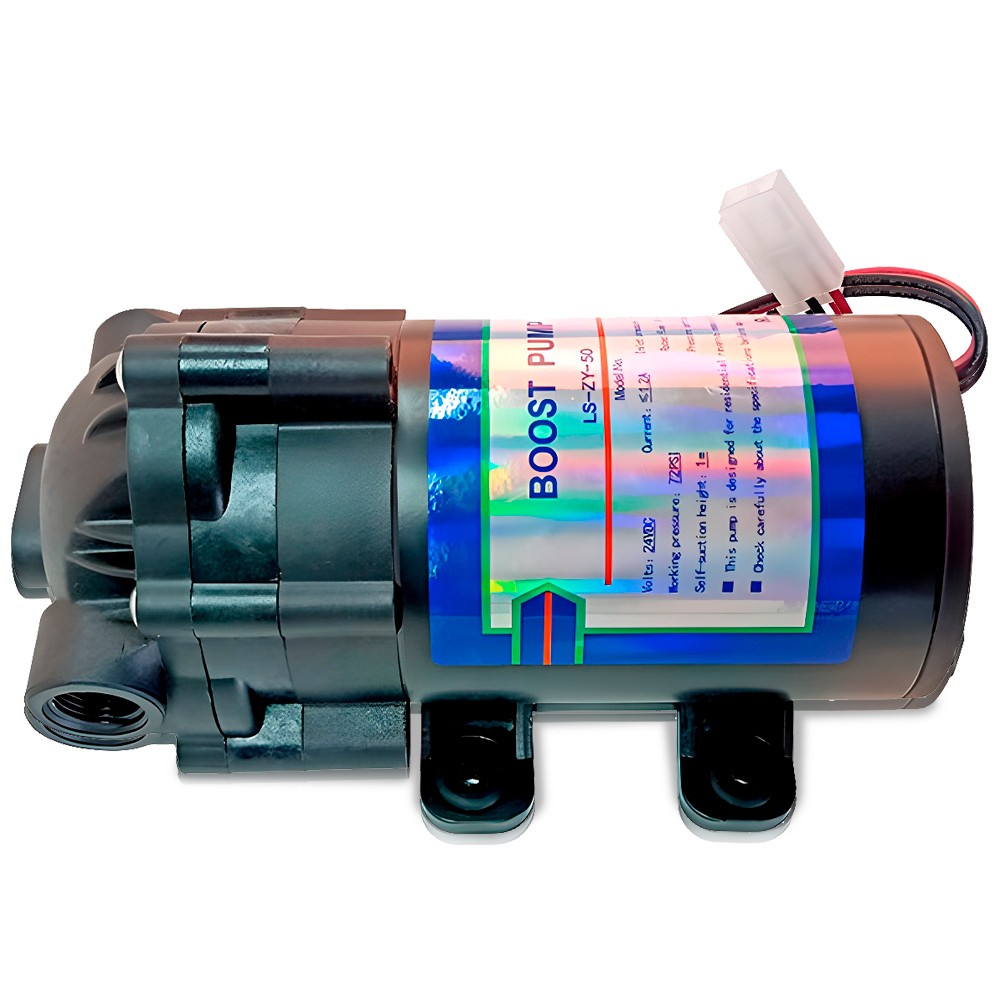

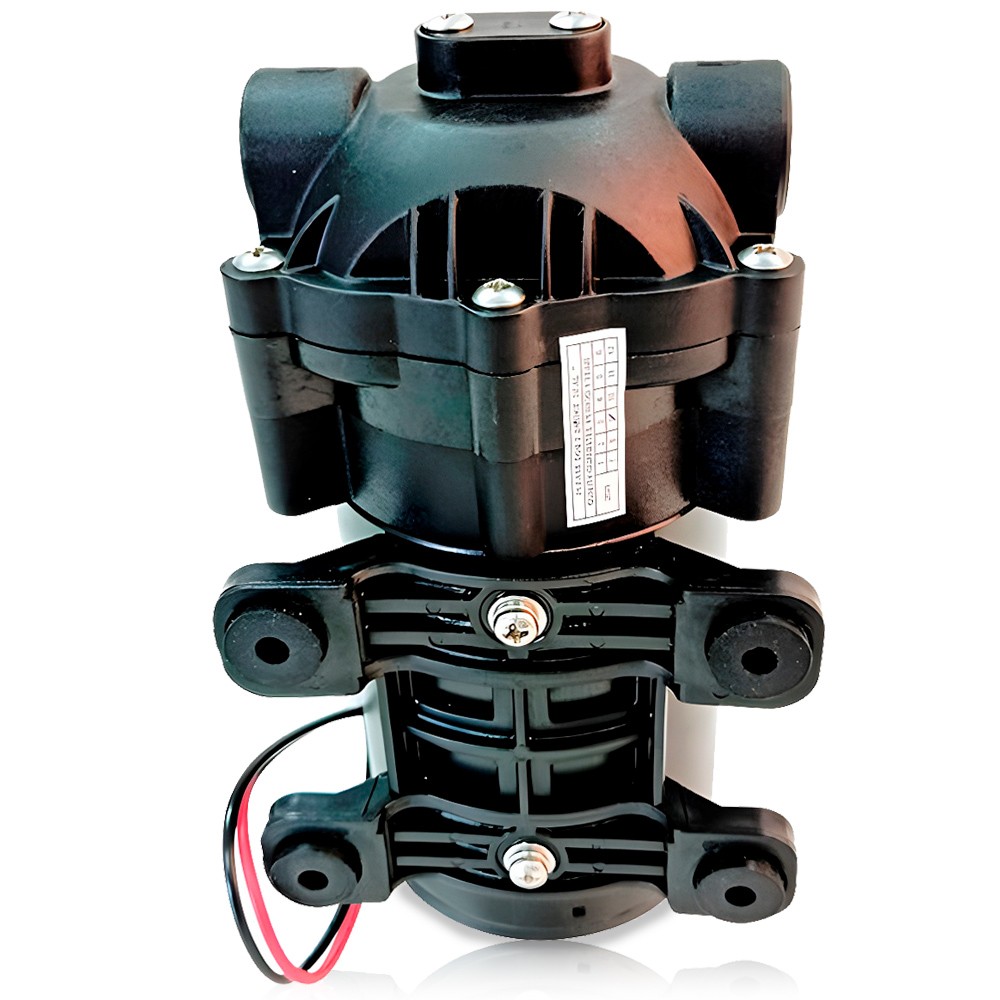

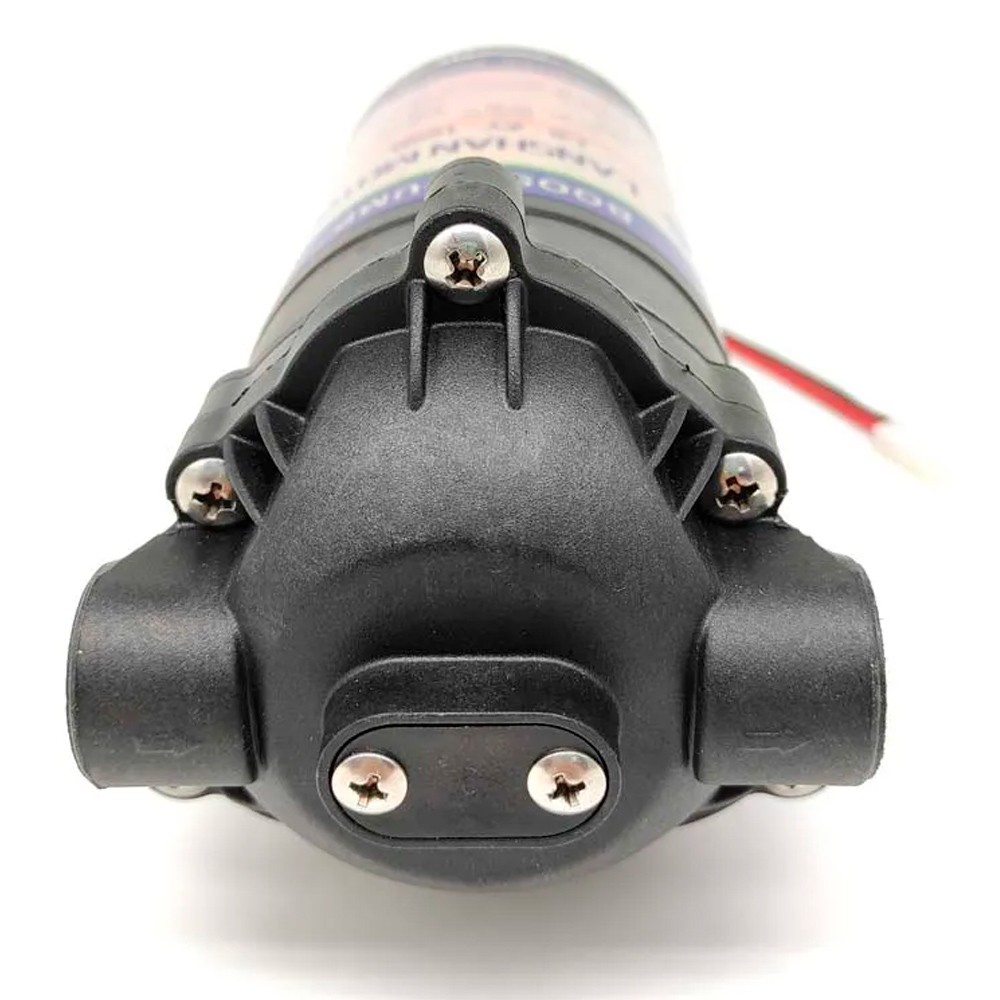

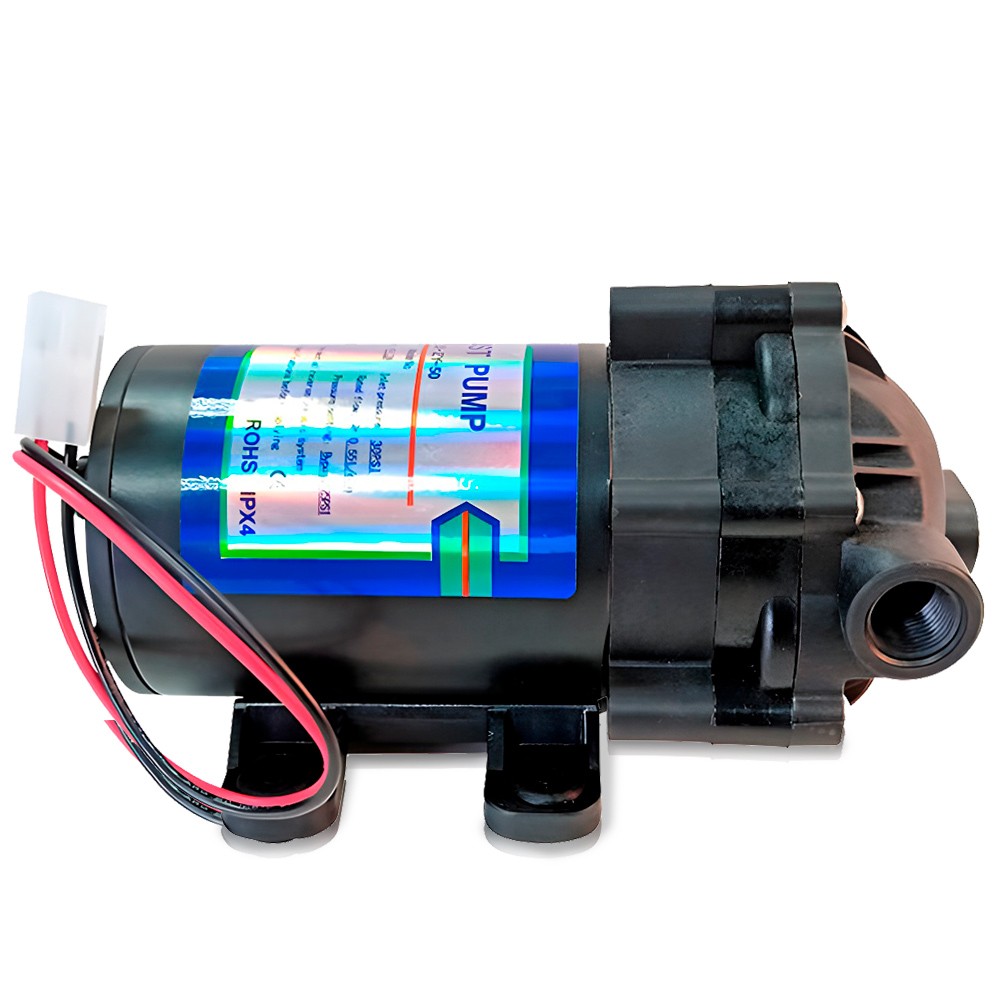

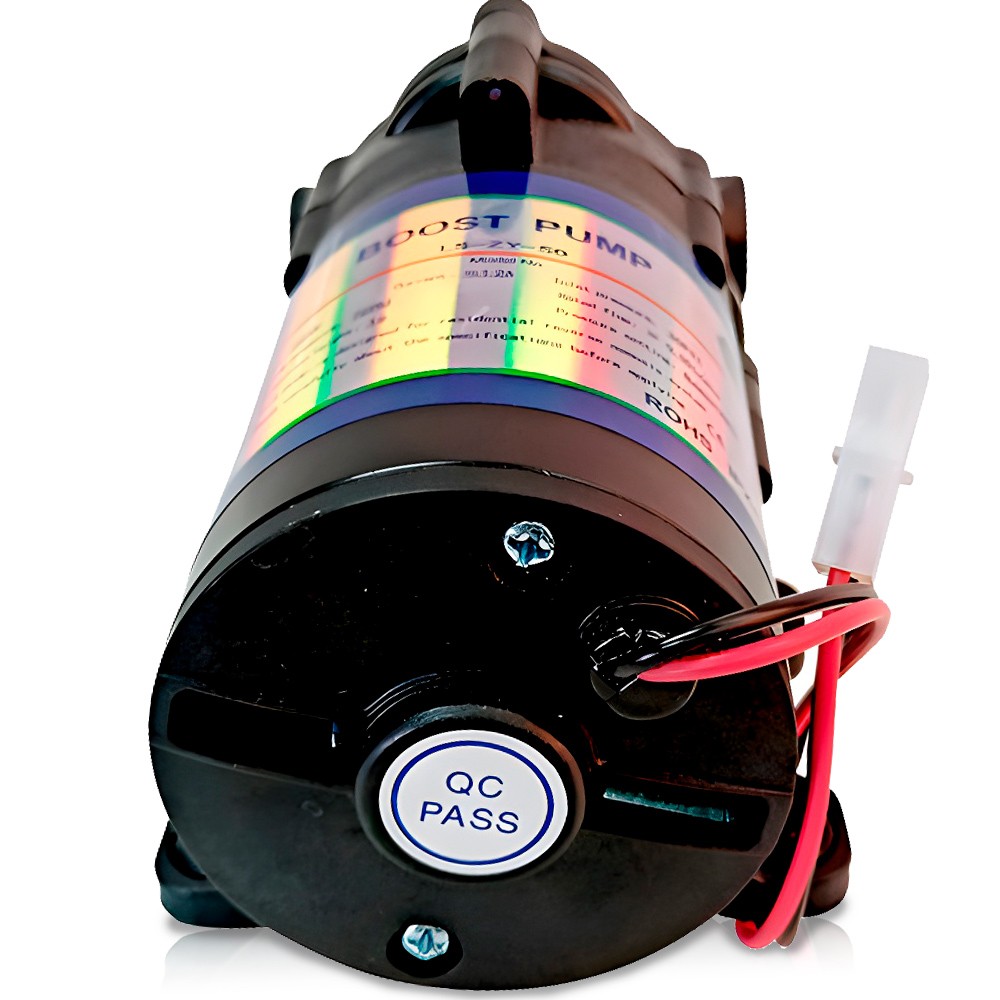

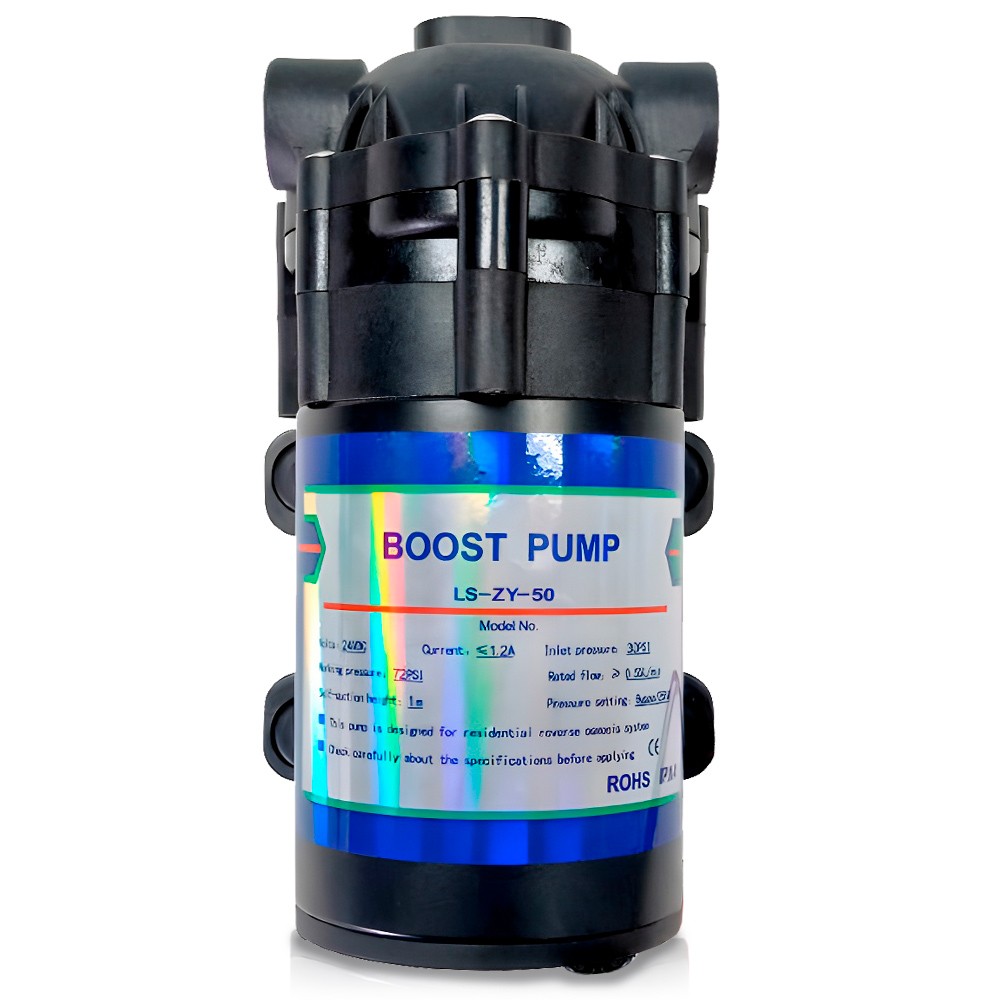

Universal Booster Pump for Reverse Osmosis – 50 GPD (24V)

The Universal Booster Pump 50 GPD is an essential component for ensuring the optimal performance of your reverse osmosis system, especially if the incoming water pressure is below 3.5 bar. Designed to enhance filtration efficiency, this pump boosts system performance, ensuring a steady water flow and extending the lifespan of the membrane.

✔ Enhance Your Reverse Osmosis System's Performance

If your home or facility has low water pressure, the RO membrane may not function properly, leading to reduced purified water output and lower filtration efficiency. With this 24V booster pump, your system will work at its best, delivering a stable flow rate of 0.6 LPM and a working pressure of 5 bar, significantly improving purified water production.

✔ Key Technical Features

• Voltage: 24V
• Max Current: 1.2A
• Consumption: 0.6A
• Flow Rate: 0.6 LPM
• Working Pressure: 5 bar
• Maximum Inlet Pressure: 2 bar
• Lift Height: 1 meter
• Dimensions: 184.5 × 99.5 × 102 mm
• Certifications: ISO9001, RoHS, and CE for quality and safety compliance

✔ Easy Installation & Wide Compatibility

This pump features a 3/4" female threaded connection, ensuring compatibility with most reverse osmosis systems on the market. To operate correctly, a high-pressure switch is required to control the pump’s automatic start and stop based on the tank’s pressure levels.

✔ Extend Pump Lifespan with a Pressure Regulator

If the inlet water pressure exceeds 4.5 bar, installing a pressure regulator set at 3.5 bar is recommended. This prevents premature wear on the pump head and ensures long-lasting performance.

⚠ Important: This model does not include a transformer. If needed, you can purchase one separately from our store.

✅ Order your Universal Booster Pump 50 GPD today and maximize your reverse osmosis system’s efficiency!
