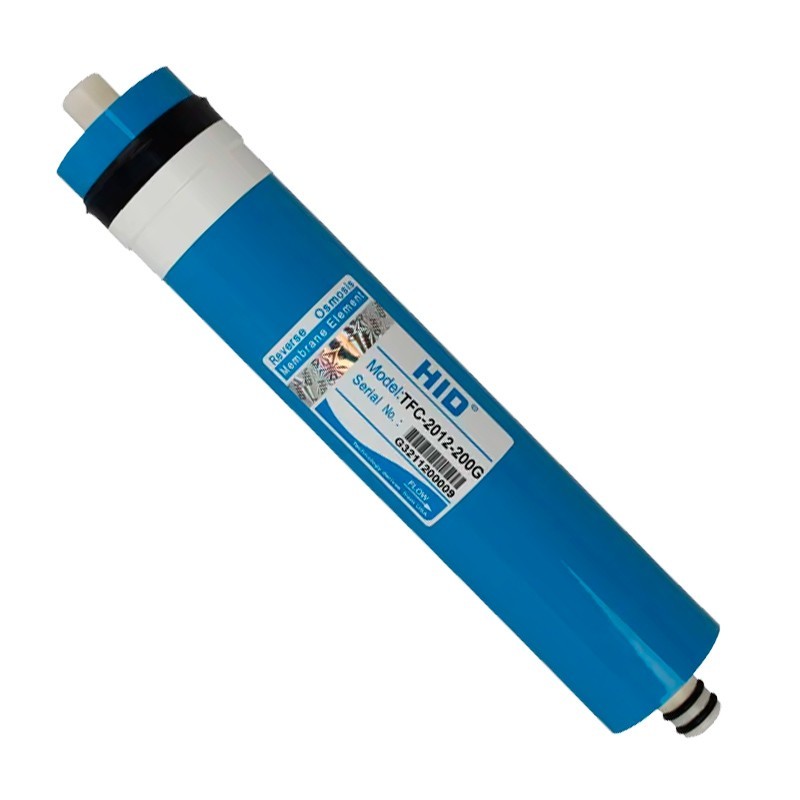

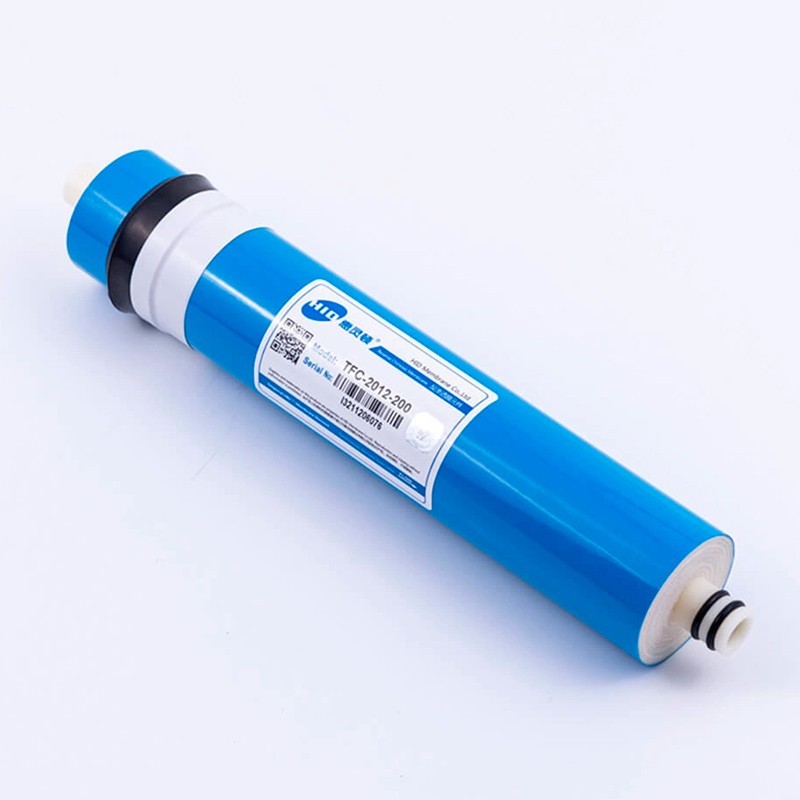

HID Universal Reverse Osmosis Membrane 200 GPD 2012 – Dow Film, High Efficiency

The HID 200 GPD RO membrane model 2012 delivers optimal performance in water treatment systems, producing up to 200 gallons per day. Manufactured with Dow Chemical membrane film, a world leader in separation technology, it ensures high salt rejection (97%) and exceptional durability.

Designed with high-quality materials and USA technology, this membrane is ideal for domestic and commercial applications, especially suitable for 2012 universal RO systems.

Performance Specifications

• ✅ Model: TFC-2012-200
• ✅ Minimum salt rejection: 95%
• ✅ Stabilized salt rejection: 97%
• ✅ Permeate flow: 200 GPD (approx. 757 L/day)
• ✅ Test temperature: 25 ℃
• ✅ Test pressure: 65 psi
• ✅ Test water TDS: 500 ppm

Operating Limits

• ✅ Maximum operating temperature: 45 ℃
• ✅ Maximum operating pressure: 200 psi
• ✅ Feed water pH range (continuous operation): 4 – 11
• ✅ Maximum feed water turbidity: 1 NTU
• ✅ Maximum feed water SDI: 5
• ✅ Chlorine tolerance: <0.1 ppm

Dimensions

• ✅ Total length (A): 298 mm (11.7")
• ✅ Outer diameter (B): 20 mm (0.78")
• ✅ Inner diameter (C): 16.8 mm (0.66")
• ✅ Outer diameter (D): 47 mm (1.85")
• ✅ Active length (E): 258 mm (10.4")

With the HID 200 GPD 2012, enjoy purer, better-tasting water with confidence, backed by Dow Chemical membrane technology.
