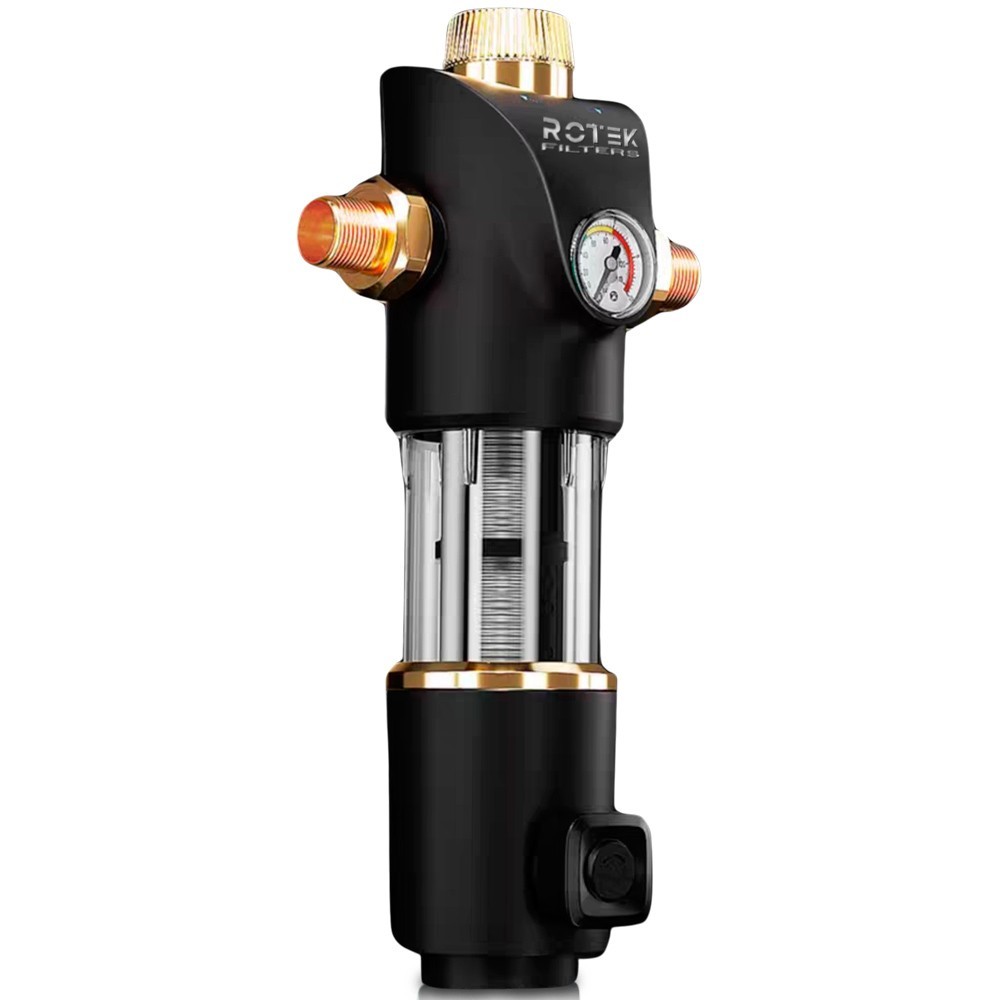

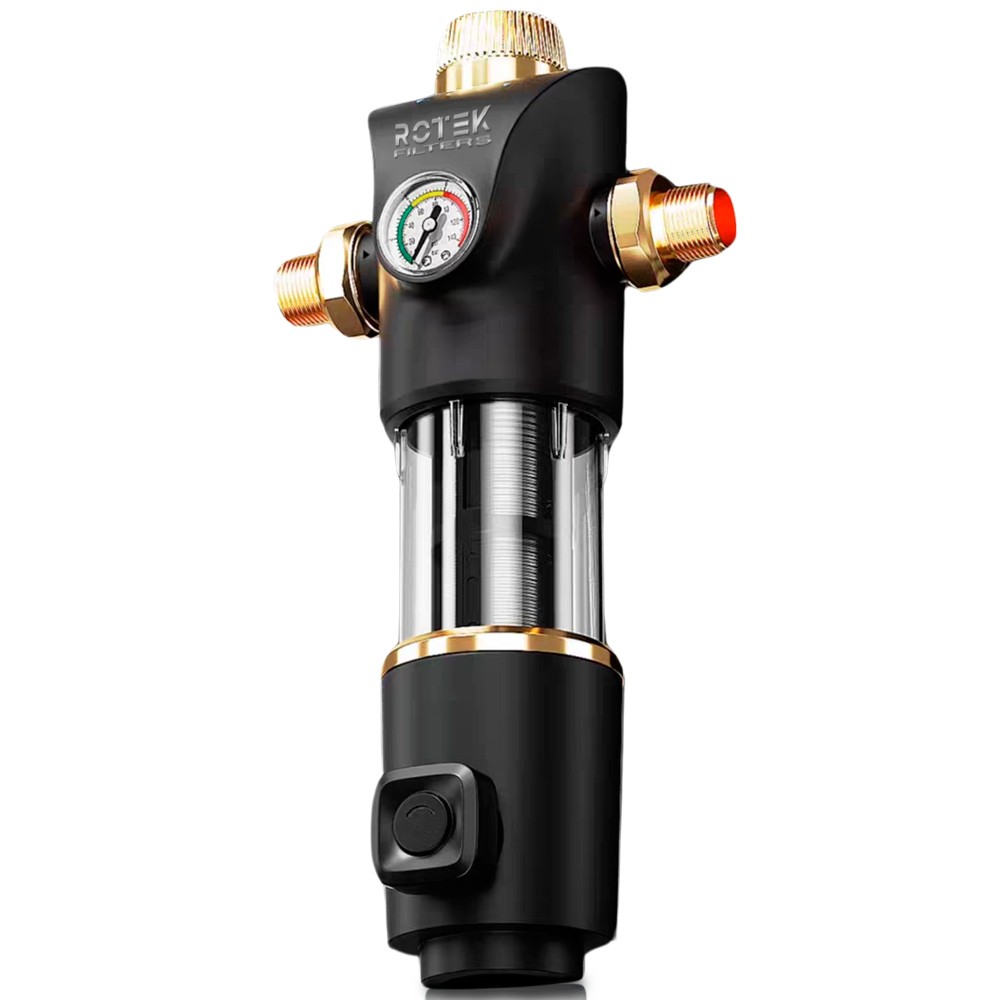

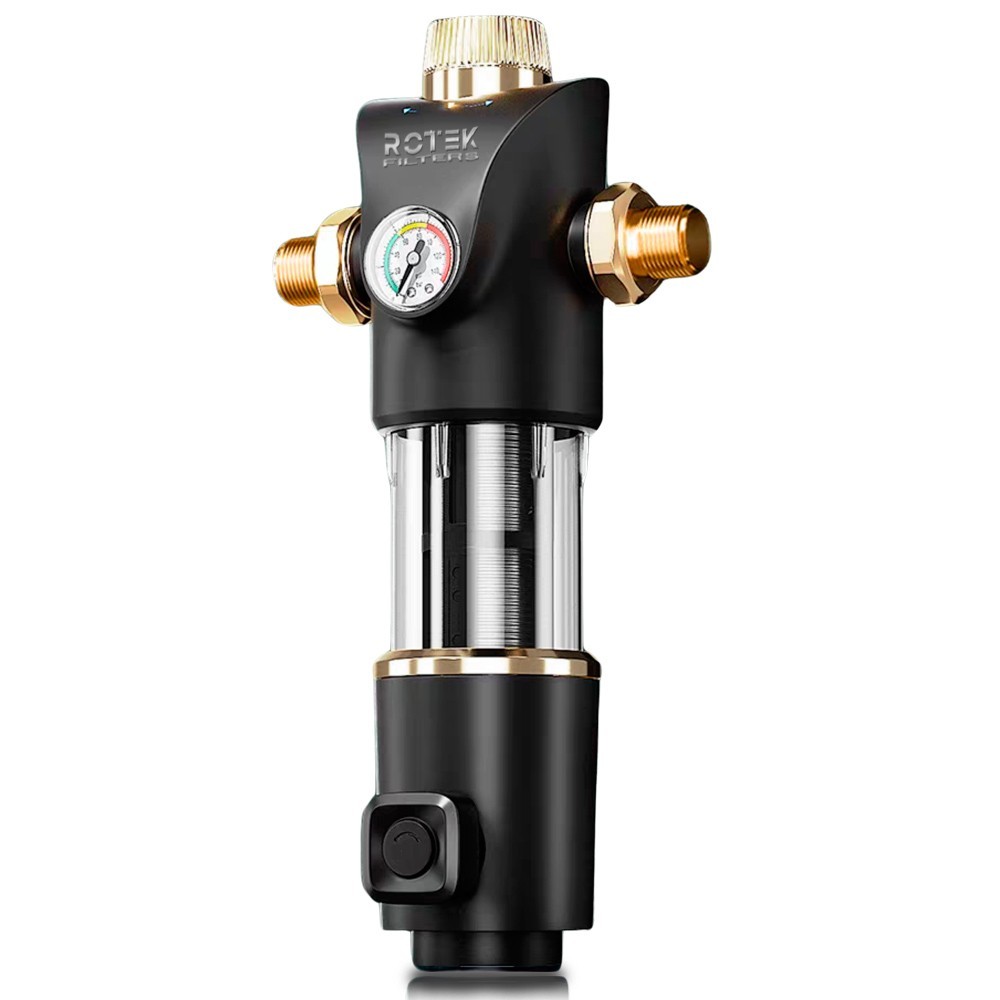

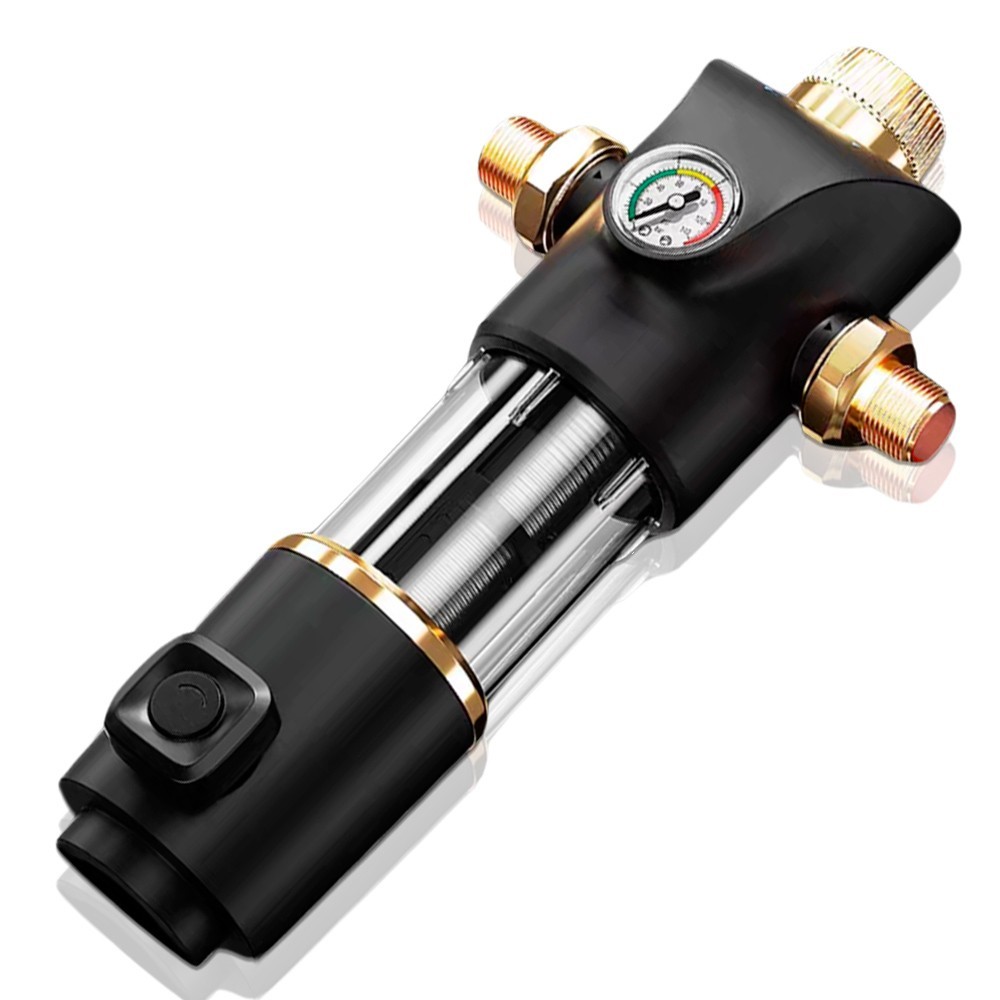

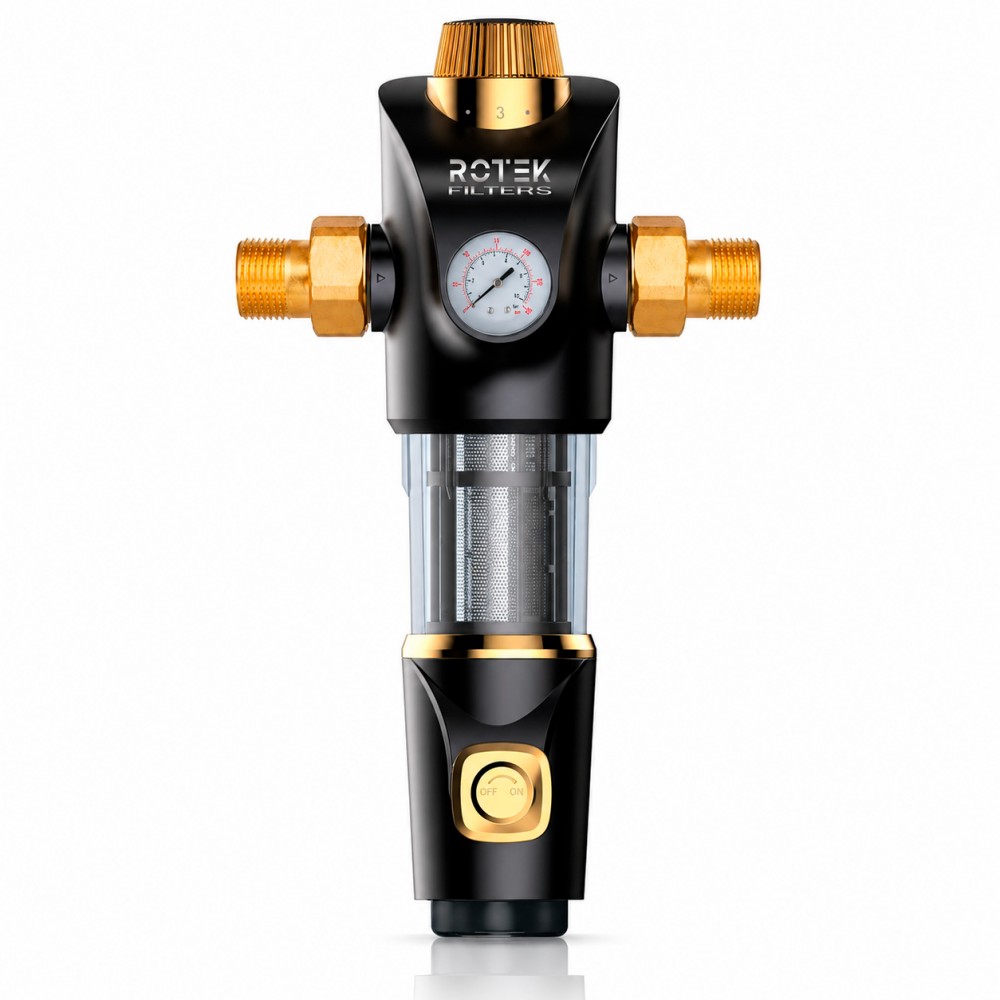

Pre water filter with latest technology front pressure gauge

Pre water filter with latest technology front pressure gauge.

High-flow, low-fouling water filter, equipped with the latest technology.

TECHNOLOGY

Pre water filter with latest technology front pressure gauge.

High-flow, low-fouling water filter, equipped with the latest technology.

TECHNOLOGY

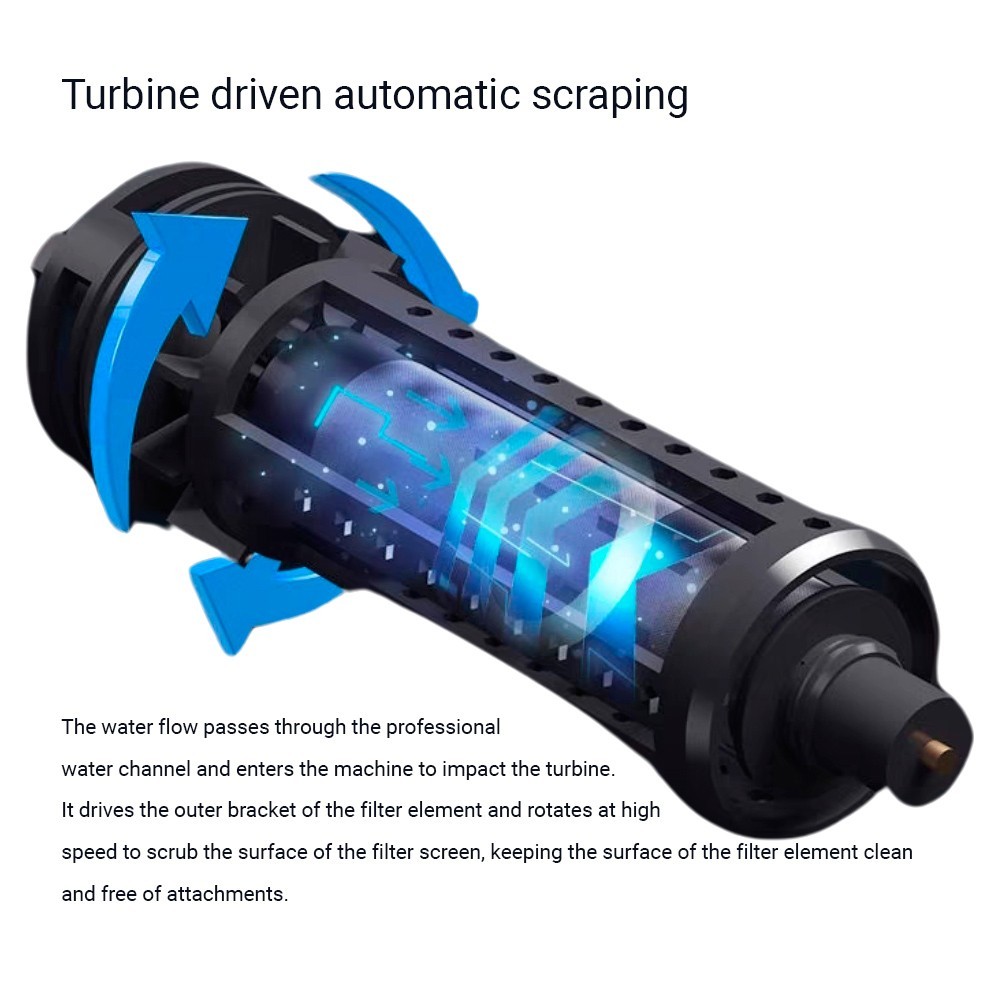

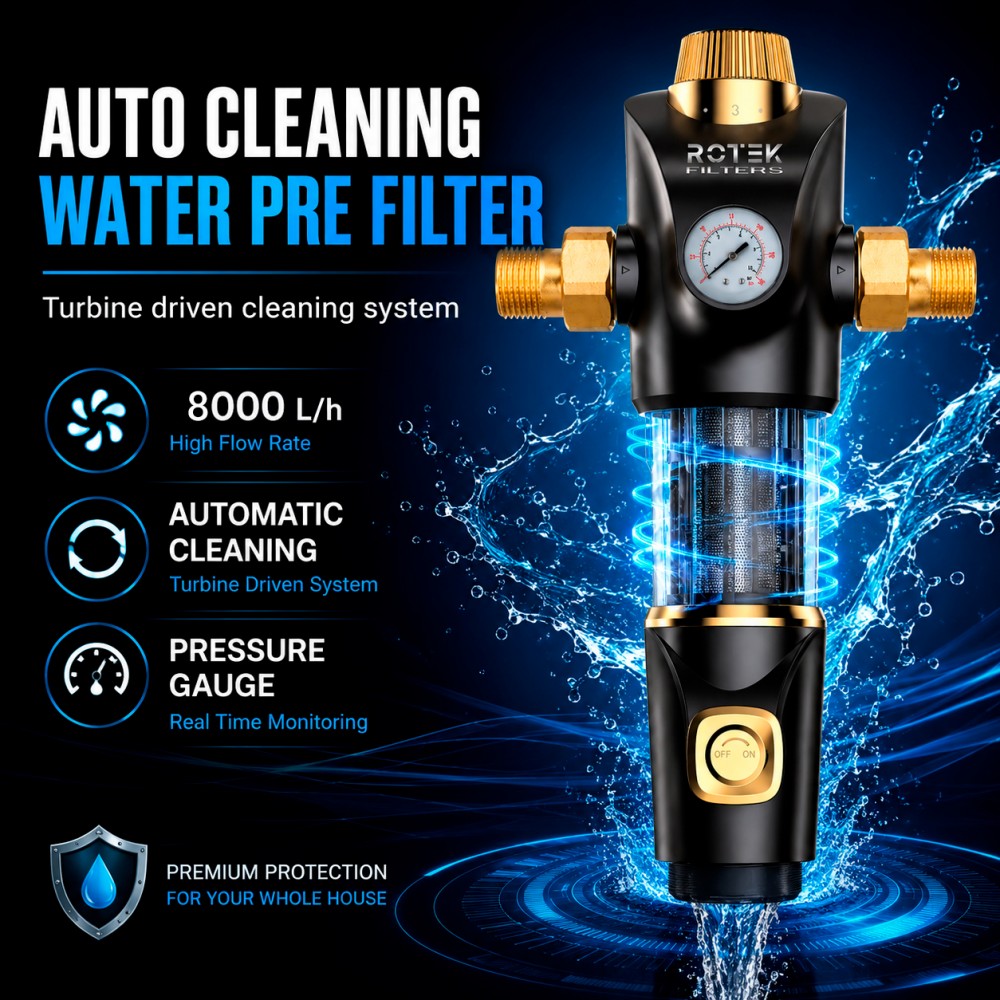

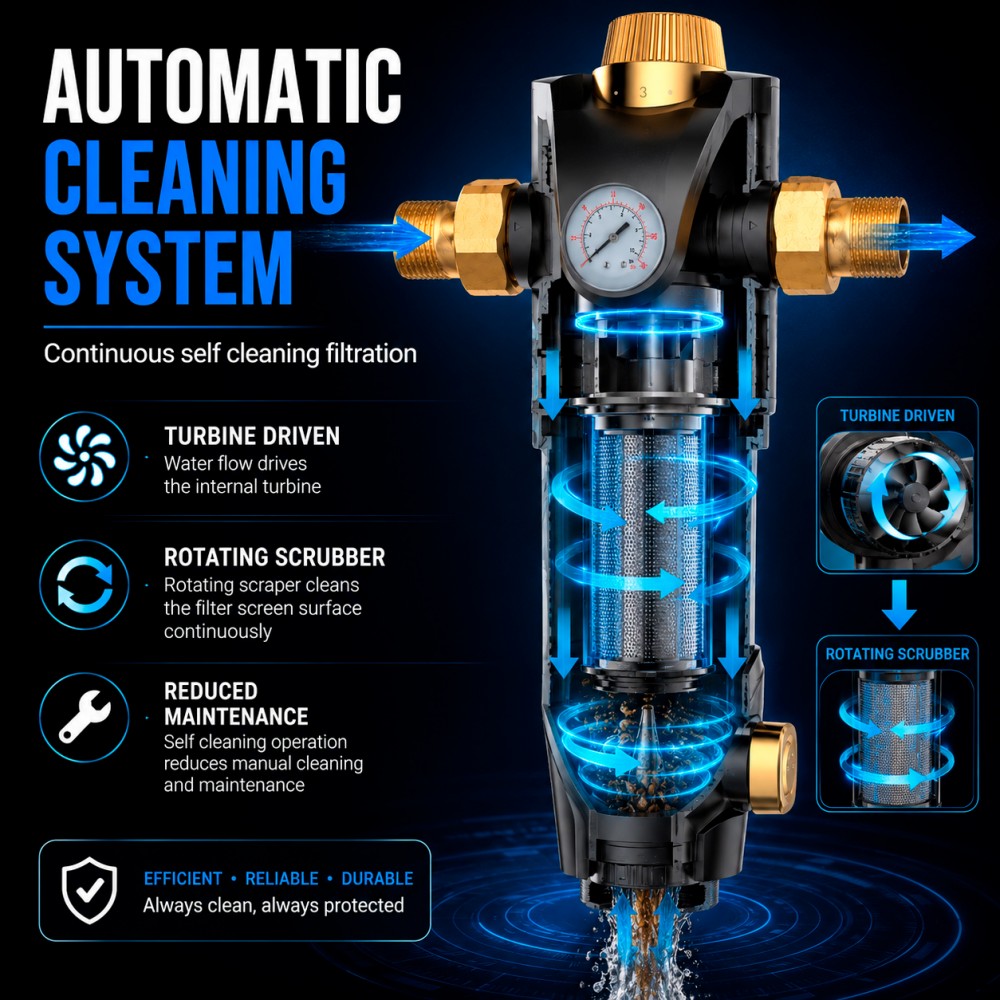

Filtration carried out by intelligent flow direction with automatic sweeping, taking advantage of the water flow, to avoid scale in the filter and deterioration of its filtration capacity.

Upper valve for manual cleaning by sweeping, convenient when opening lower backwash valve, much more effective. Cleaning the Filter on both sides of it.

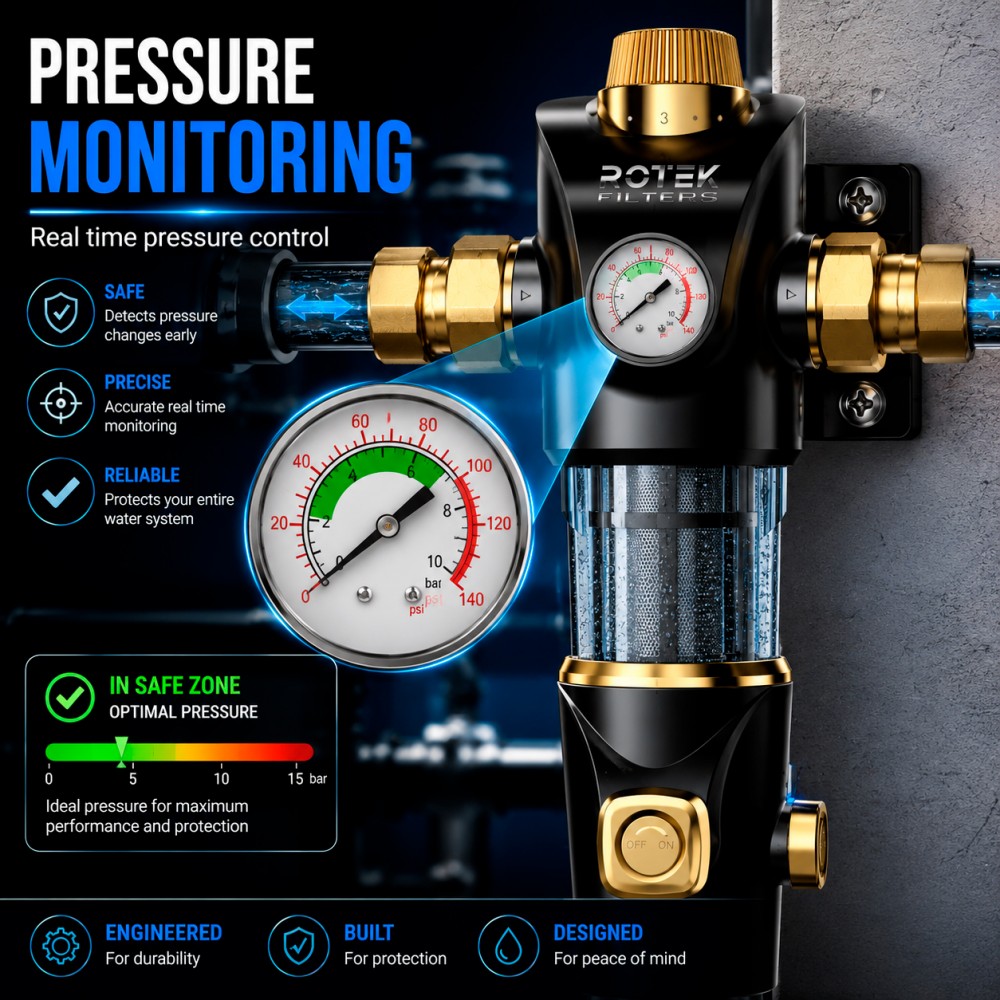

Constant water pressure monitor.

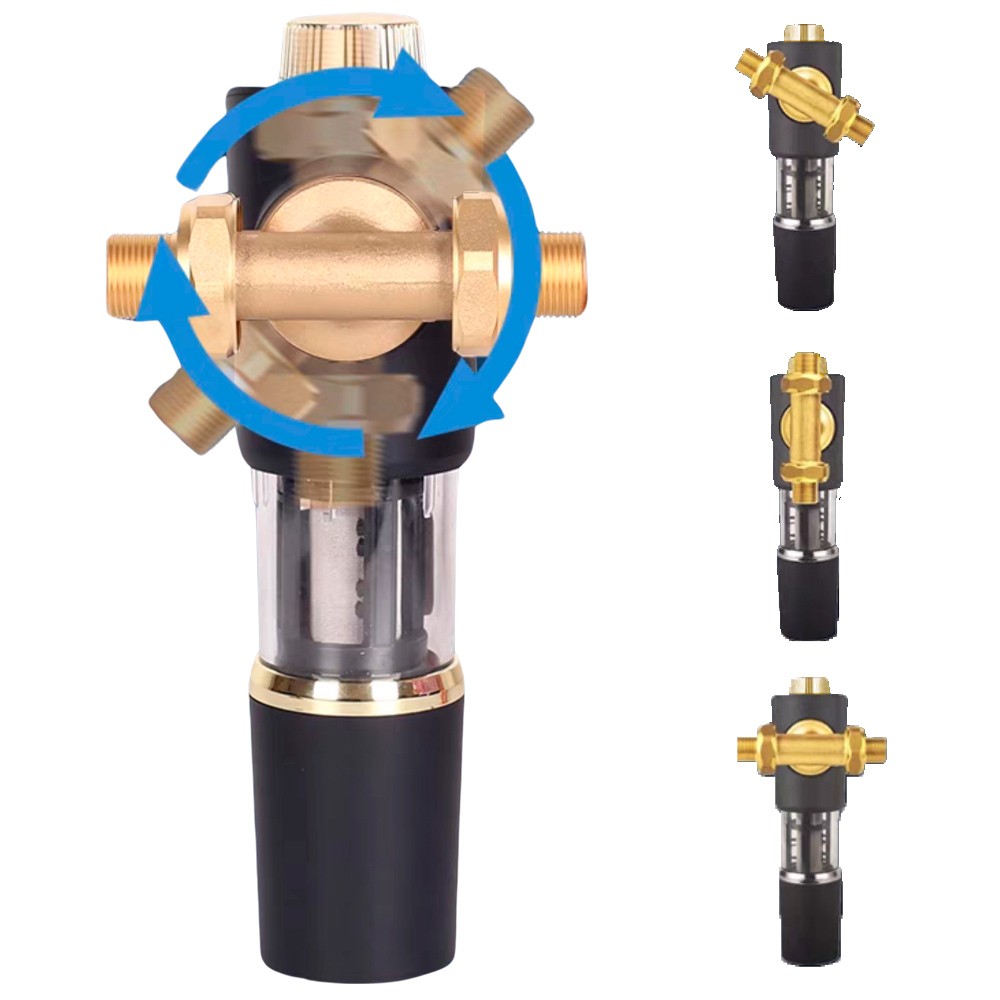

360º rotating pipe connection installation for installation in any position.

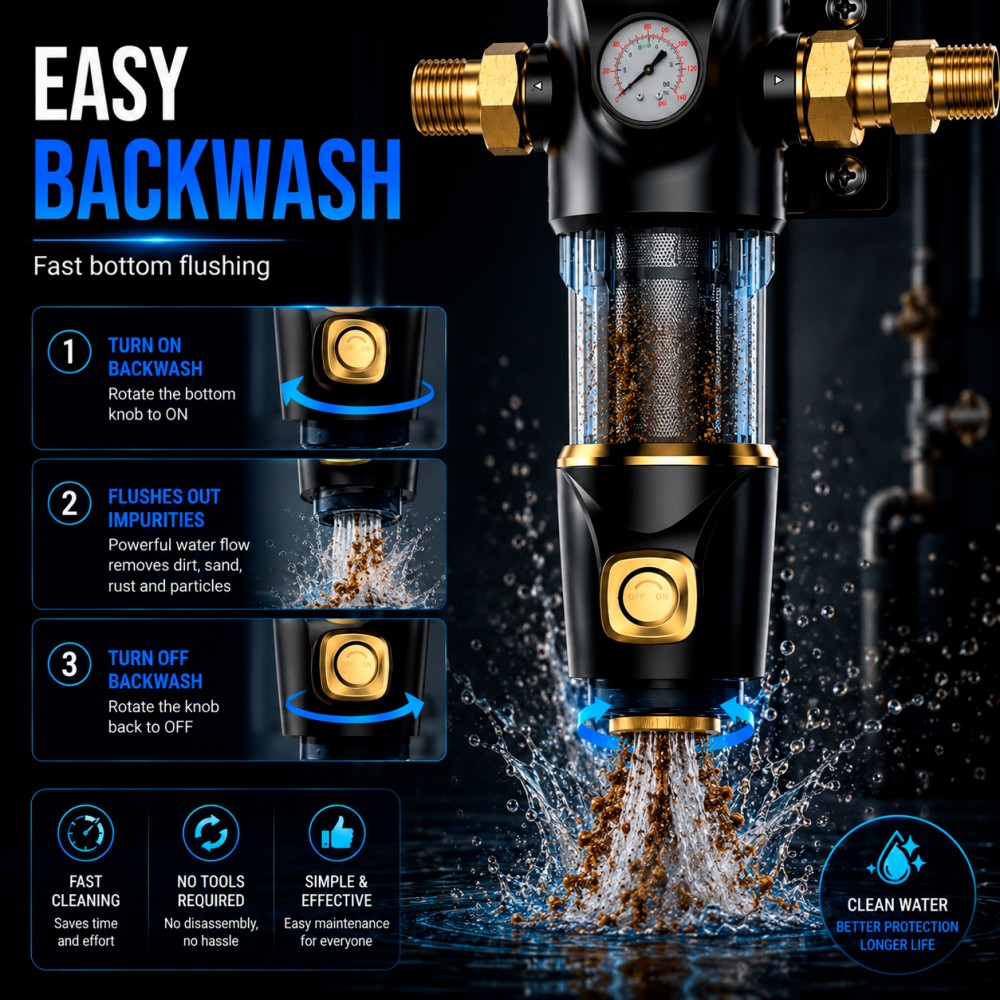

Automatic discharge with counterwash.

Flow passage system where a high flow rate is achieved, 4500 lph.

QUALITY

Inside it has a lead-free 59 fine brass head.

BPA-free, highly explosion-resistant and anti-frost polypropylene cup.

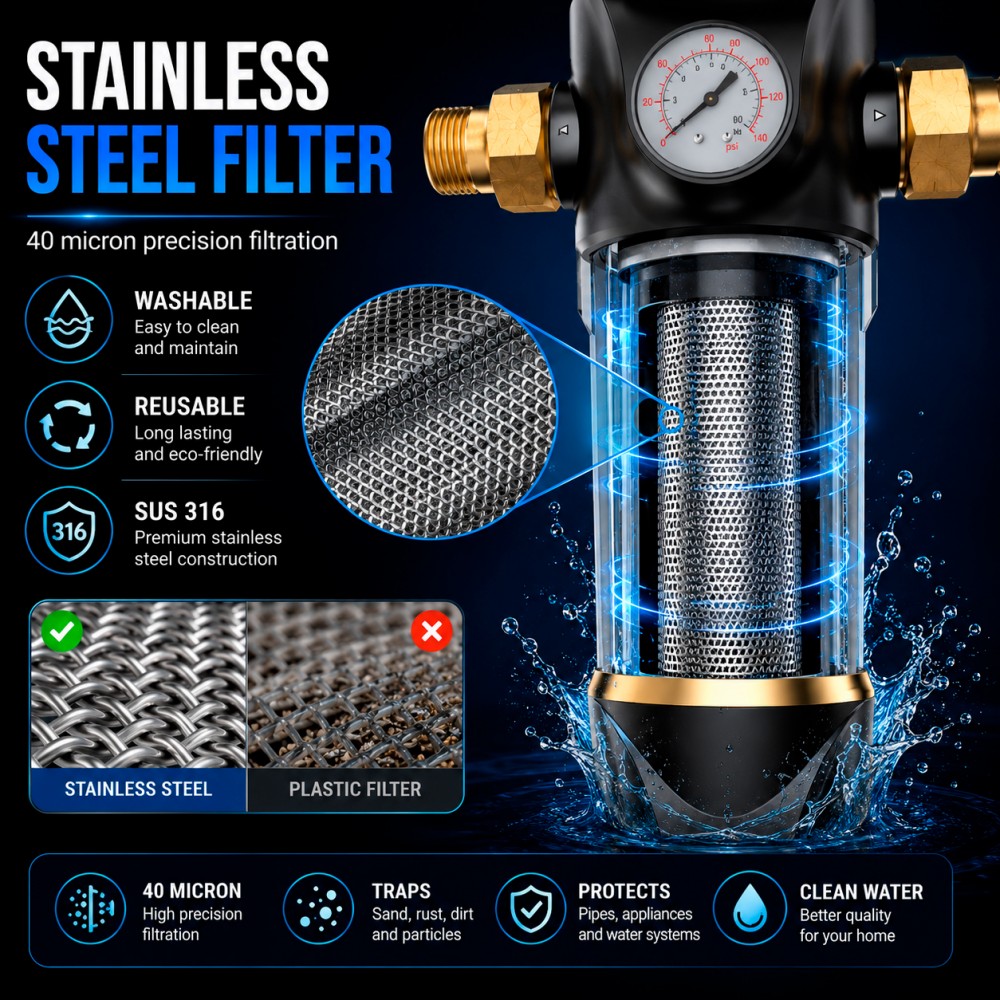

Washable 40 micron ASUS 316 stainless steel mesh filter.

DESCRIPTION

Complete water filtration kit.

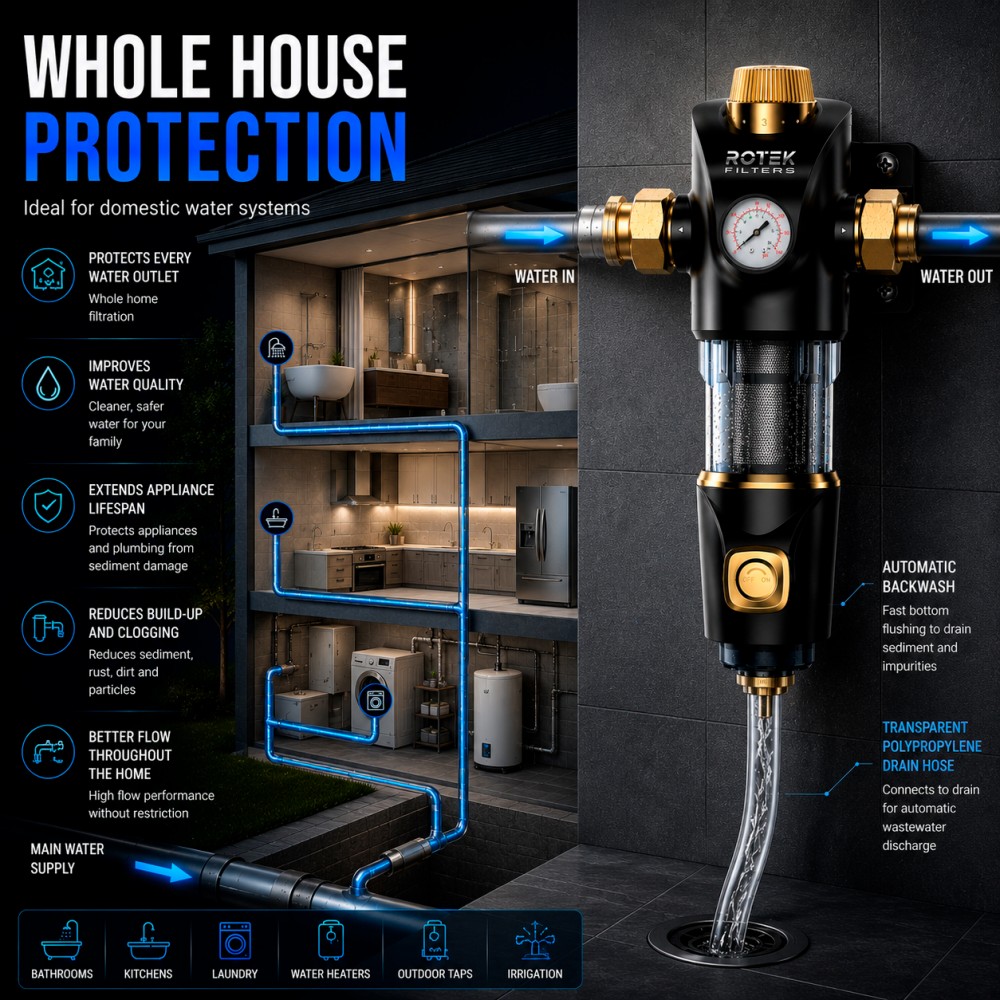

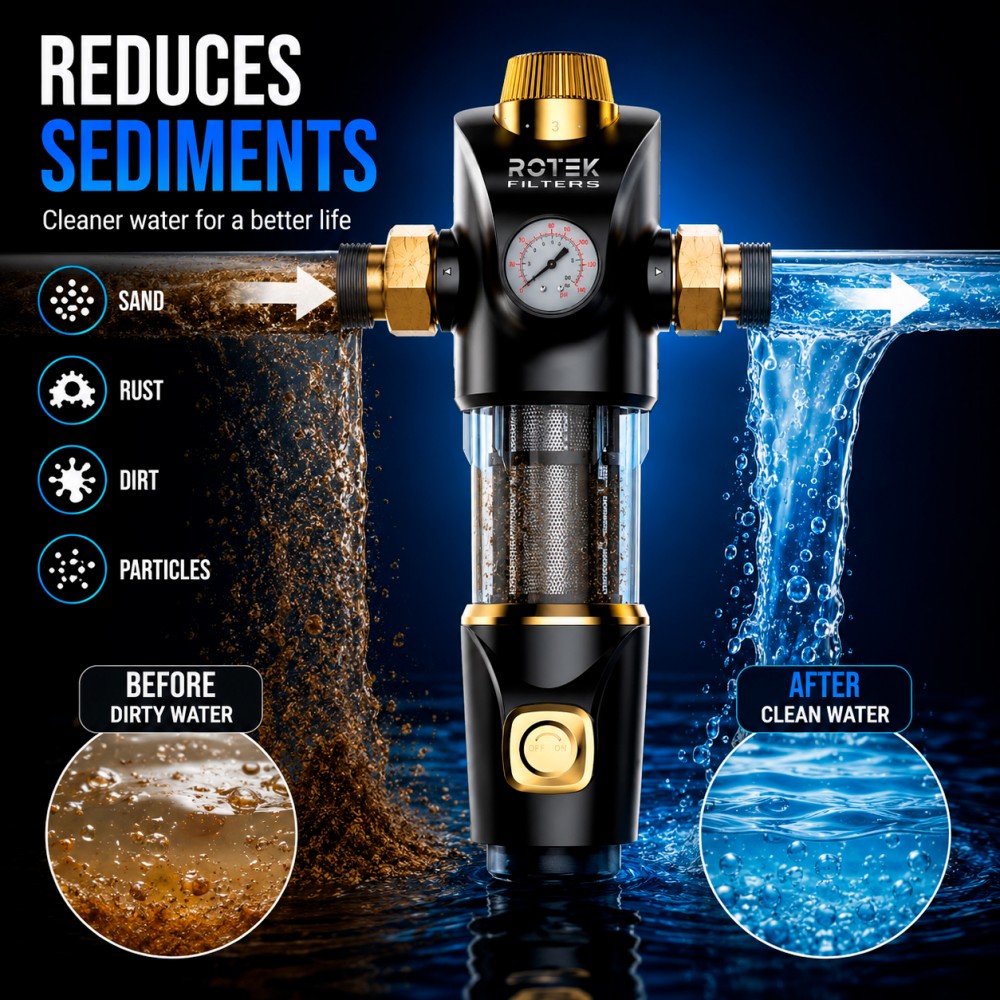

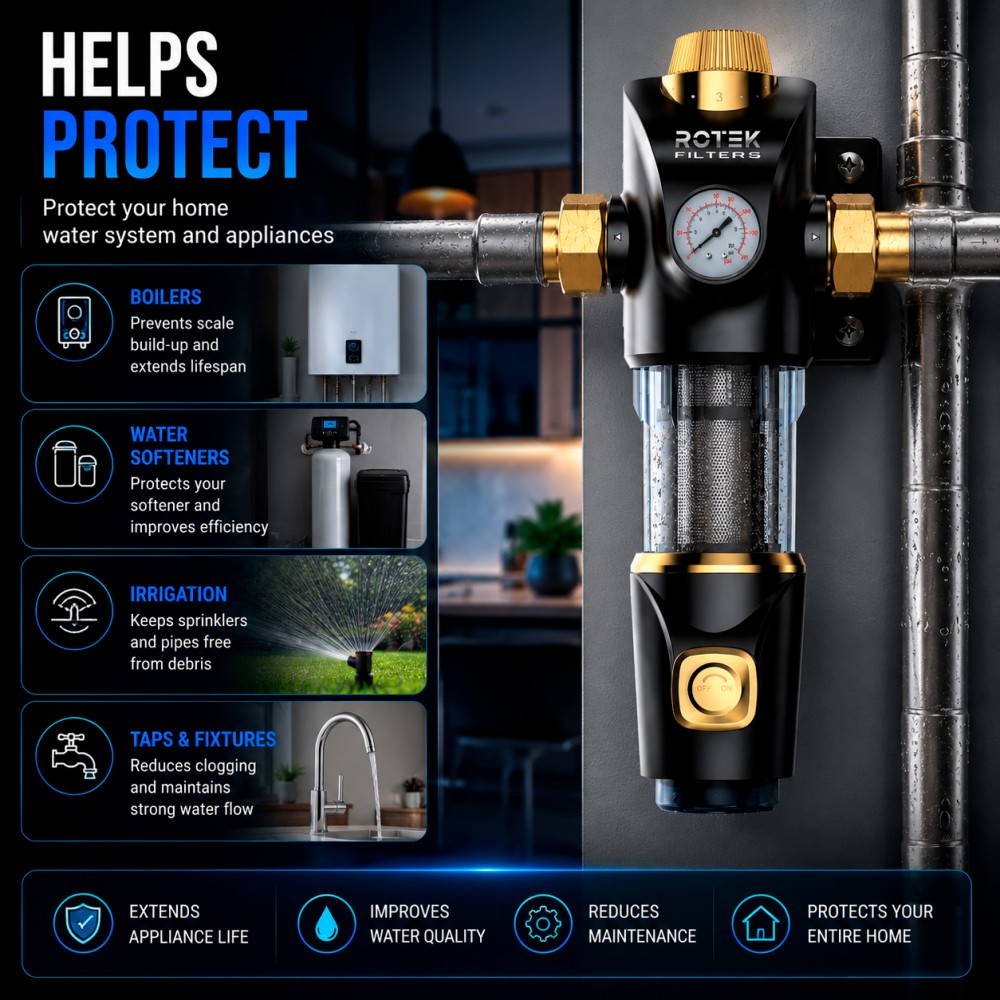

For the elimination of elements suspended in the water at the entrance to the house or garden.

It has a valve in the head for centrifugal washing of the head and drainage through a lower hose-type connection outlet.

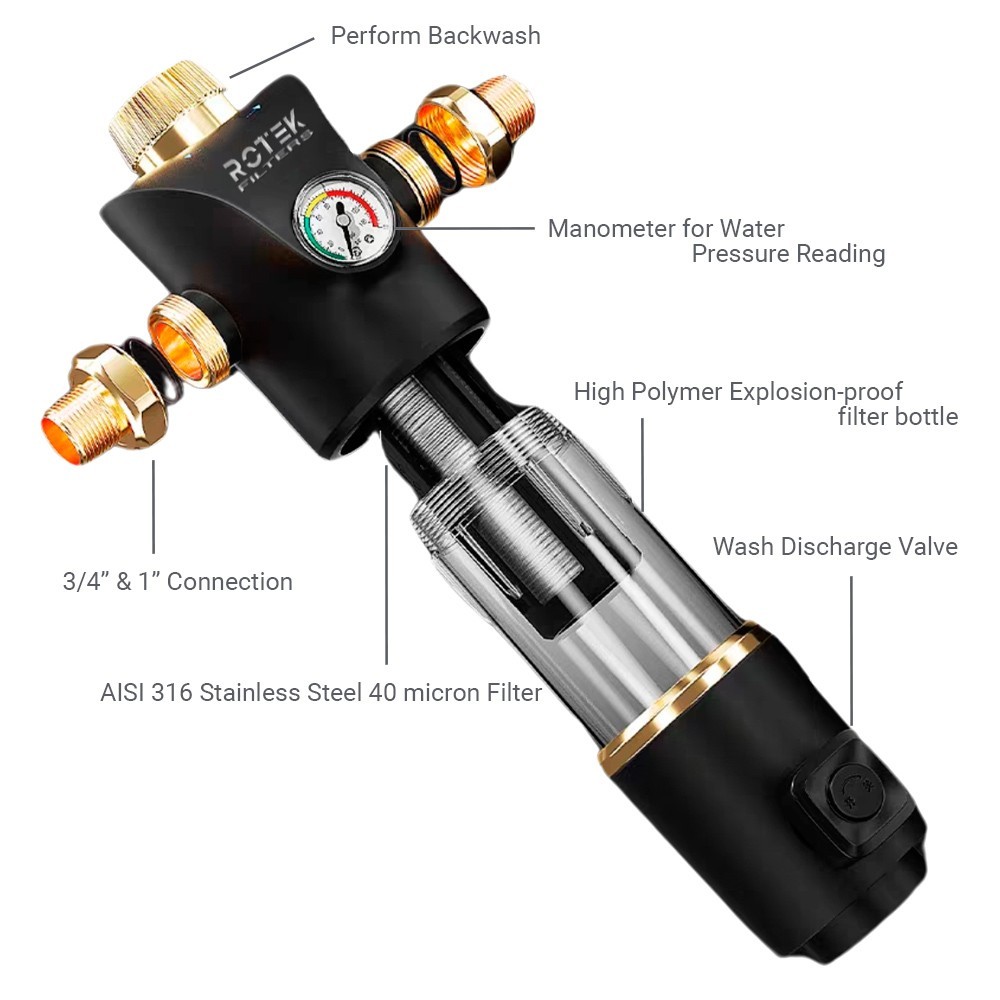

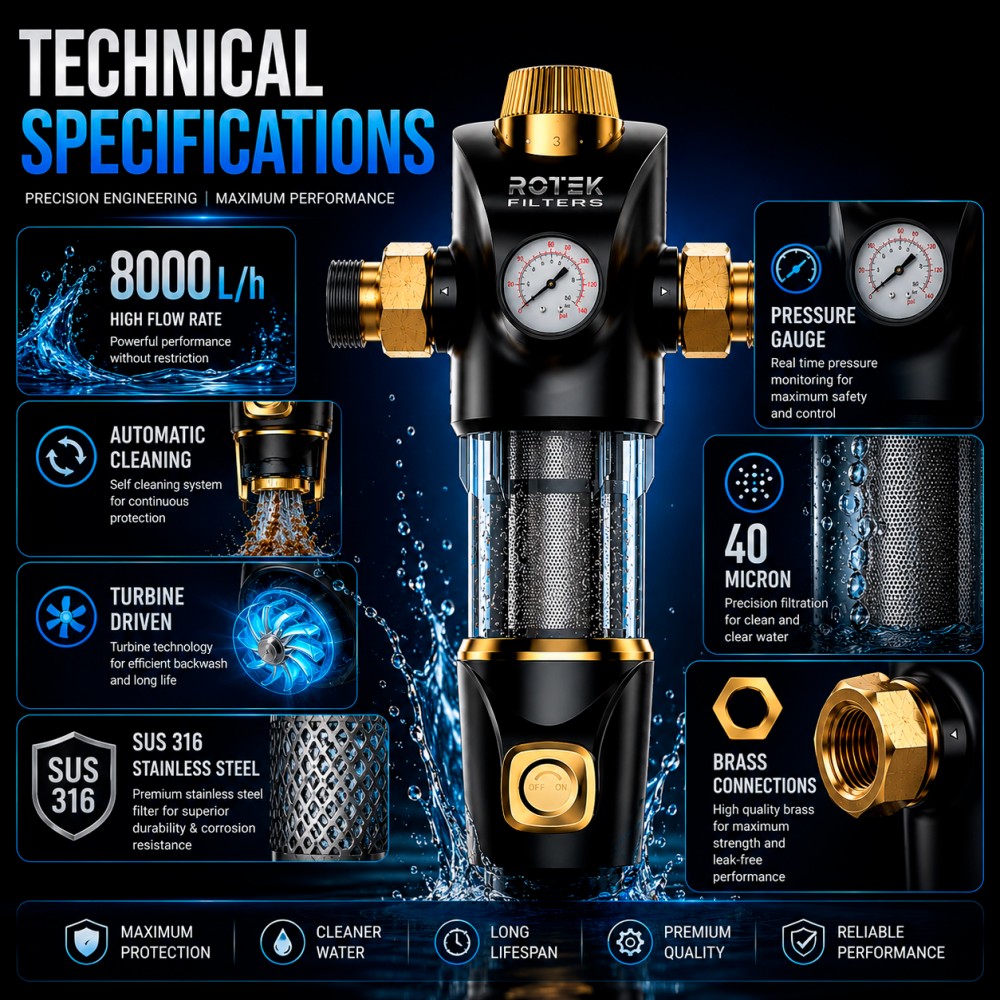

Characteristics:

•      Semi-automatic centrifugal washing by rotating valve
•      Hose type connection drain.

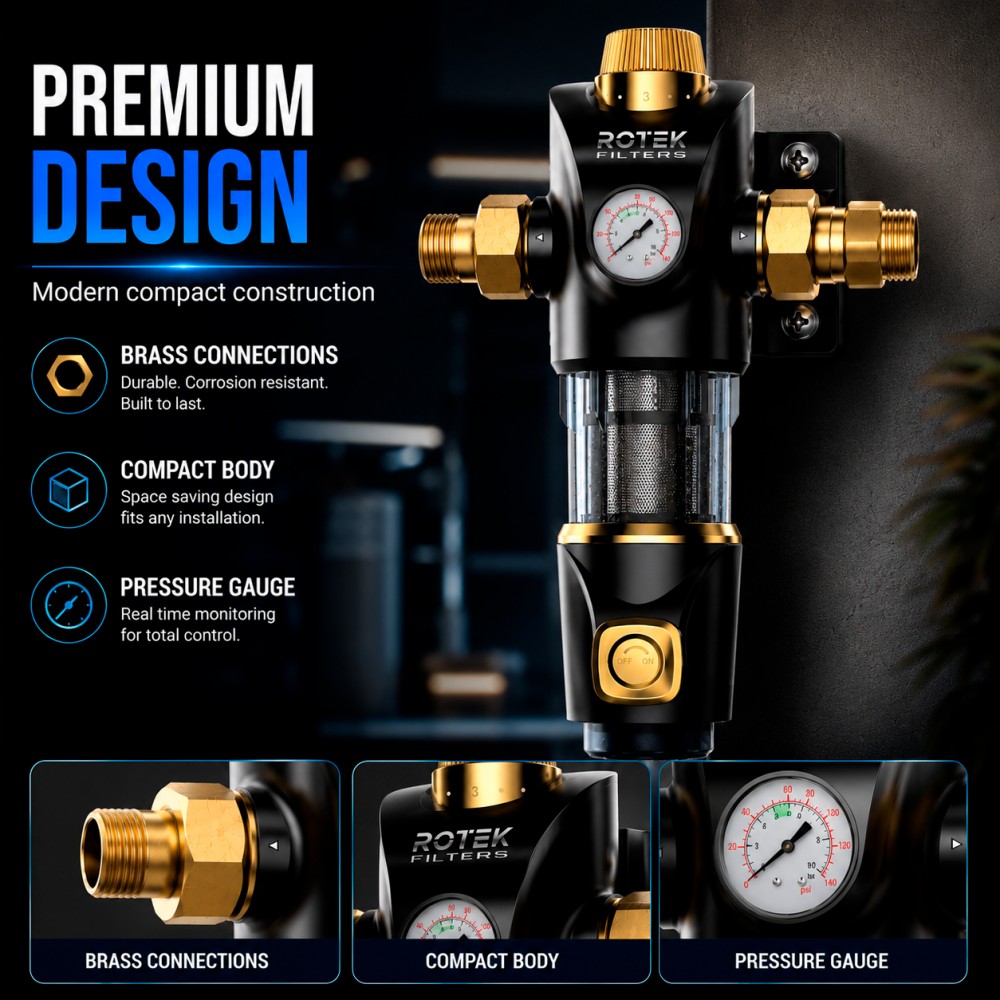

•      Built-in front pressure gauge.
•      1" or 3/4" male brass connection.
•      Plastic bracket and mounting accessories included for wall mounting.
•      Cup disassembly wrench.
•      Maximum operating pressure 10 bar.
•      Maximum flow rate 4500 lph.
•      59 ASUS 316 fine brass head.
•      High resistance transparent propylene glass.
•      Stainless filter, double-sided washing through lower valve opening and upper valve rotation.

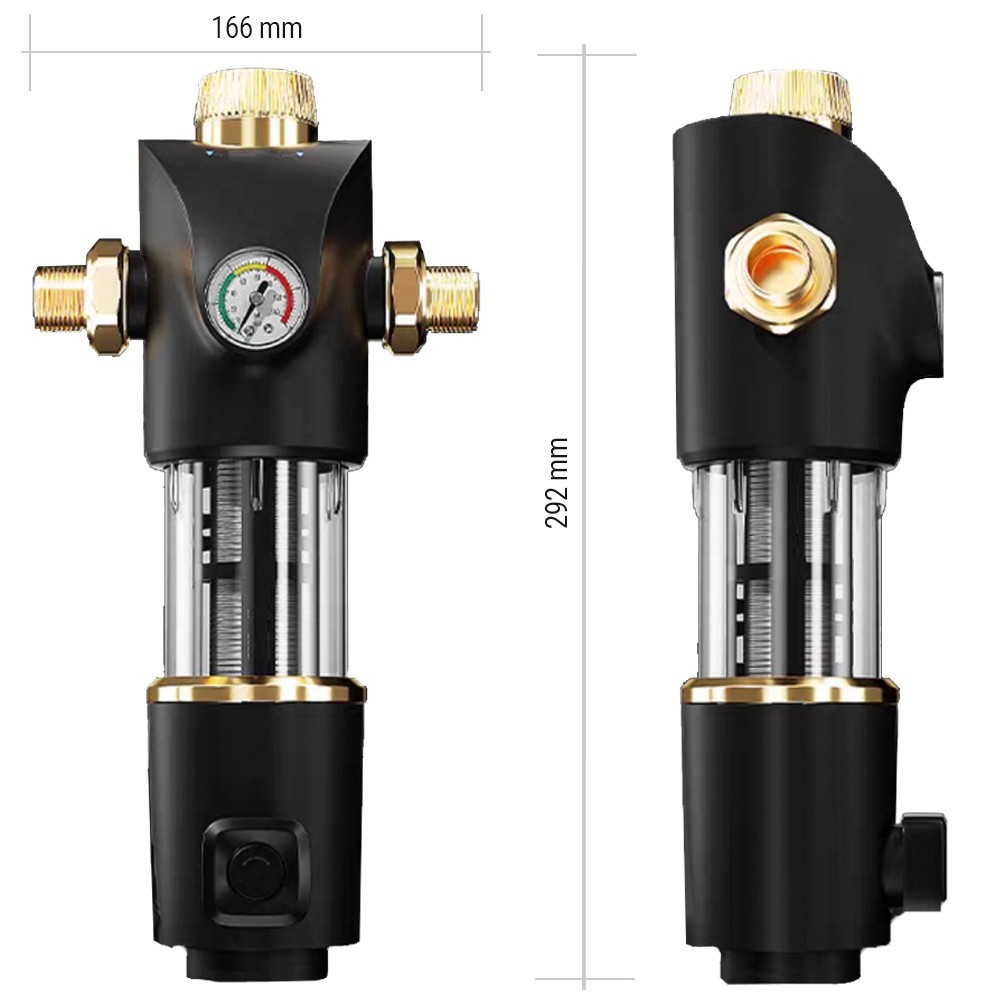

•      Product size: 290x140mm

  ROHS, SGS, FDA Quality Seals
