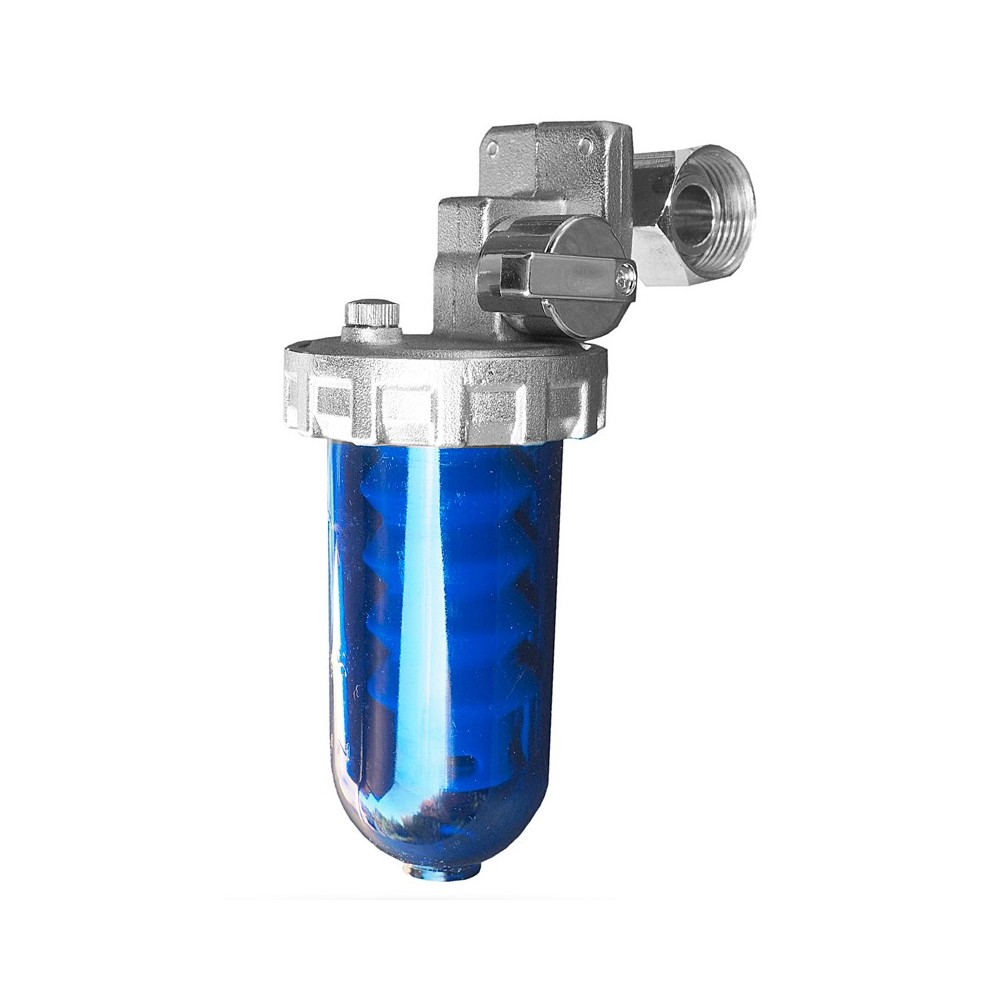

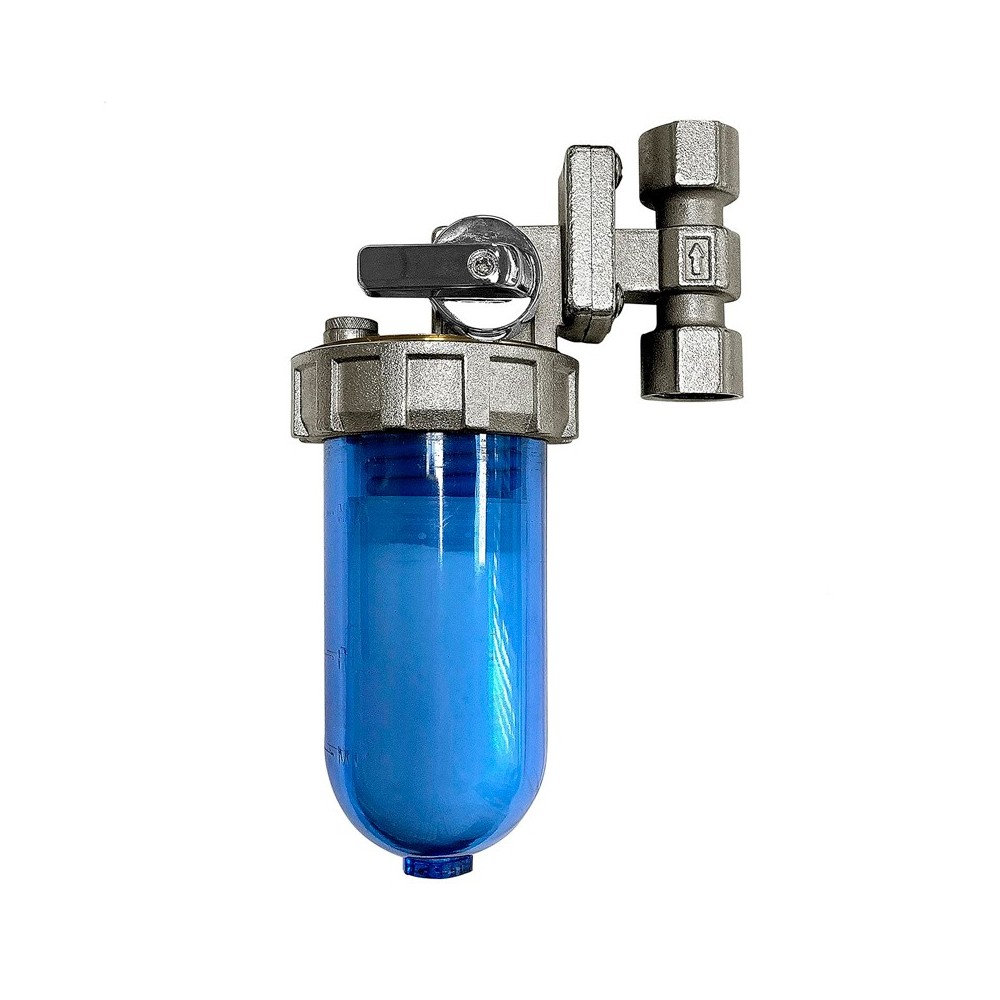

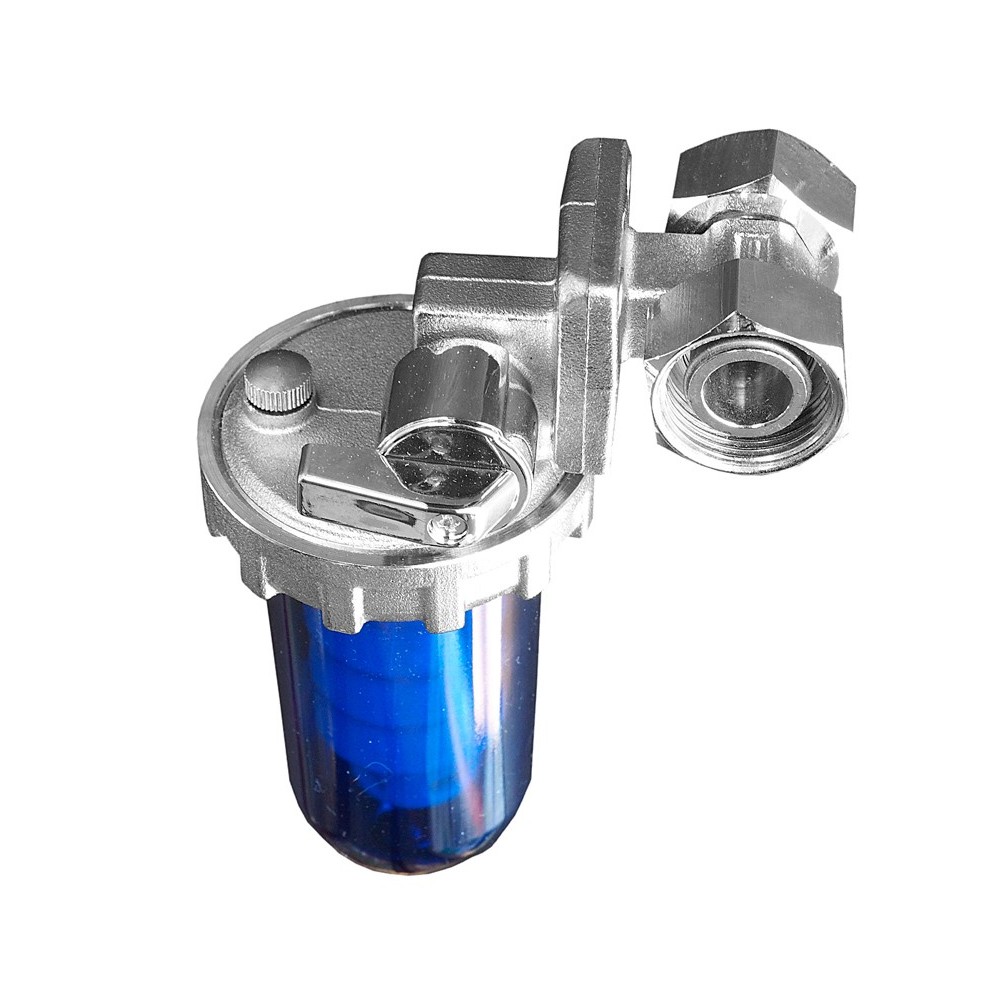

Proportional dispenser polyphosphates powder, Anti limescale and Anti corrosion for the whole house

Anti-limescale and Anti-corrosion protection of water with Polyphosphates for gas boiler, electric water heater or the entire house, with proportional powder polyphosphate dispenser.

The most effective system to protect from calcareous scale and water corrosion in all the elements through which it passes, gas boilers, electric water heaters, washing machines, taps, installations, etc ...

HOW IT WORKS

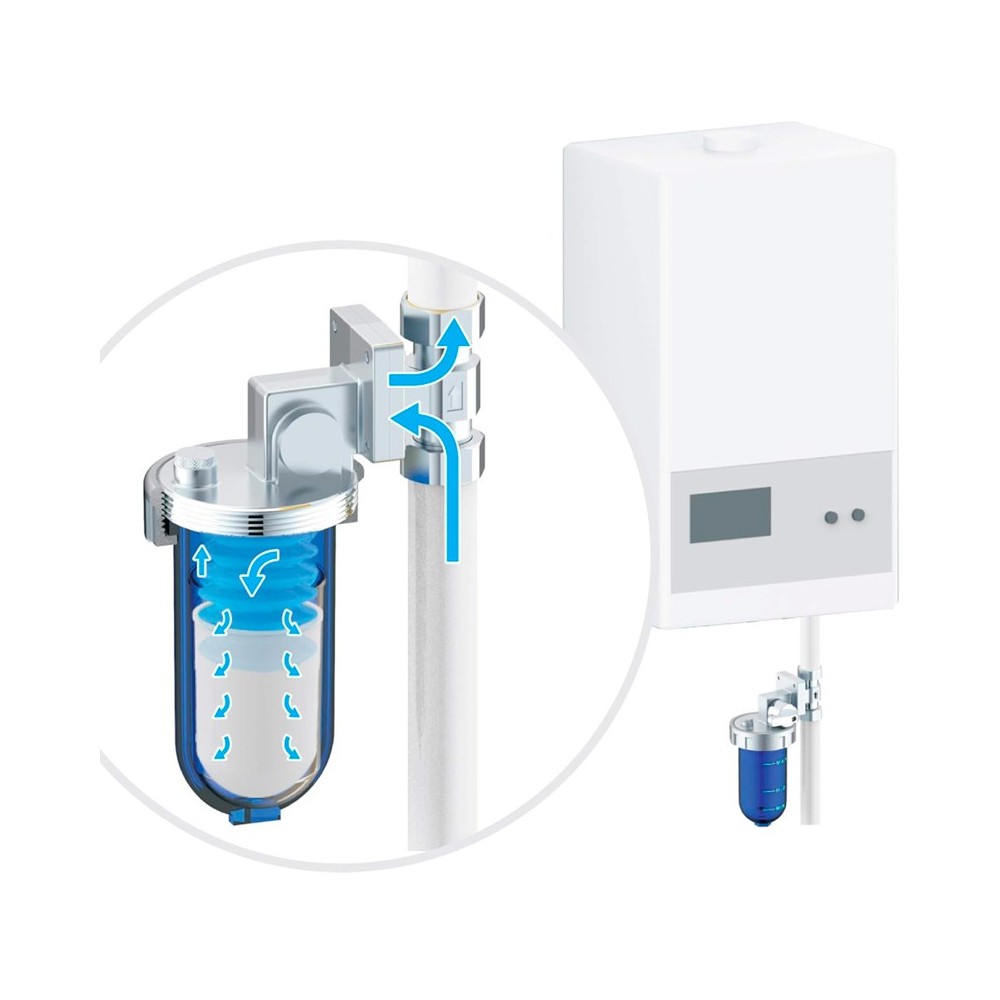

The proportional dosing system is an accurate and reliable system for dosing a correct proportion of polyphosphates to achieve effective action.

By venturi effect, polyphosphates are added to the water proportionally regardless of the flow rate of the water.

Guaranteeing not to exceed the amount of 5mg / l recommended for human consumption.

ADVANTAGES

The advantages of dosing Polyphosphates are innumerable:

INLAYS

Polyphosphates are inorganic compounds capable of binding to calcium and magnesium ions forming a chemical compound similar to lime which, however, unlike the latter, does not adhere to any surface that comes into contact.

In this way a protective film is created inside the ducts that does not allow the formation of limescale incrustations, as if a shield were made.

REJUVENATION

Progressively rejuvenates partially embedded facilities and elements.

HEAT EXCHANGER PERFORMANCE

Maintains the original performance of heat exchange for domestic hot water production.

In any device such as gas heater, heater or electric water heater is able to maintain energy efficiency.

Fouling radically affects the energy consumption to heat water, as little as 1 mm causes 25% of wasted energy.

WATER CORROSION

The dosage of polyphosphates corrects the corrosive aggressiveness of water, protecting all elements against oxidation or corrosion.

Its installation is very important after a water softener in which a large amount of calcium and magnesium salts are eliminated, making the water especially corrosive.

MAINTENANCE

Maintenance is simple and fast:

Once the dose of polyphosphates has been spent it must be replenished, for this the dispenser has a practical by-pass key with which the glass can be unscrewed using an available key and change the cartridge.

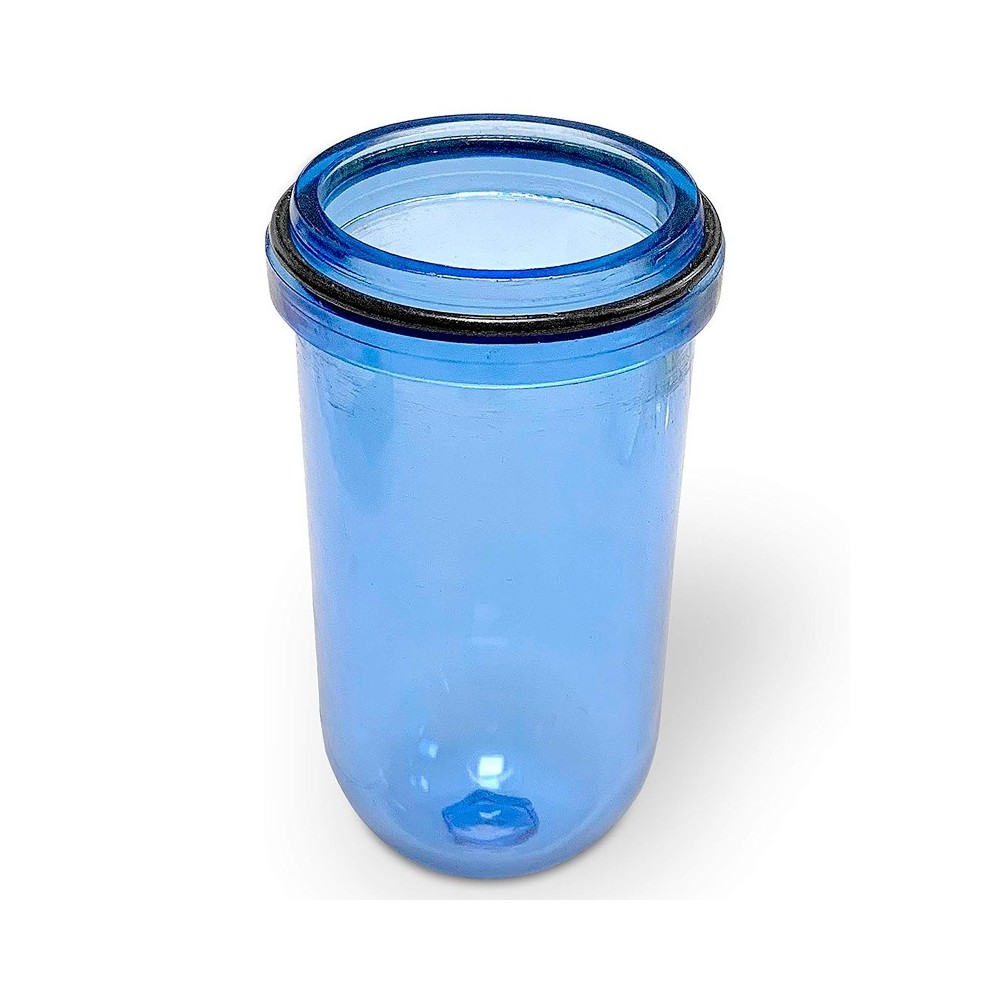

Every half year it is advisable to wash the glass and the suction rubber well so that there are no scales that hinder dosing.

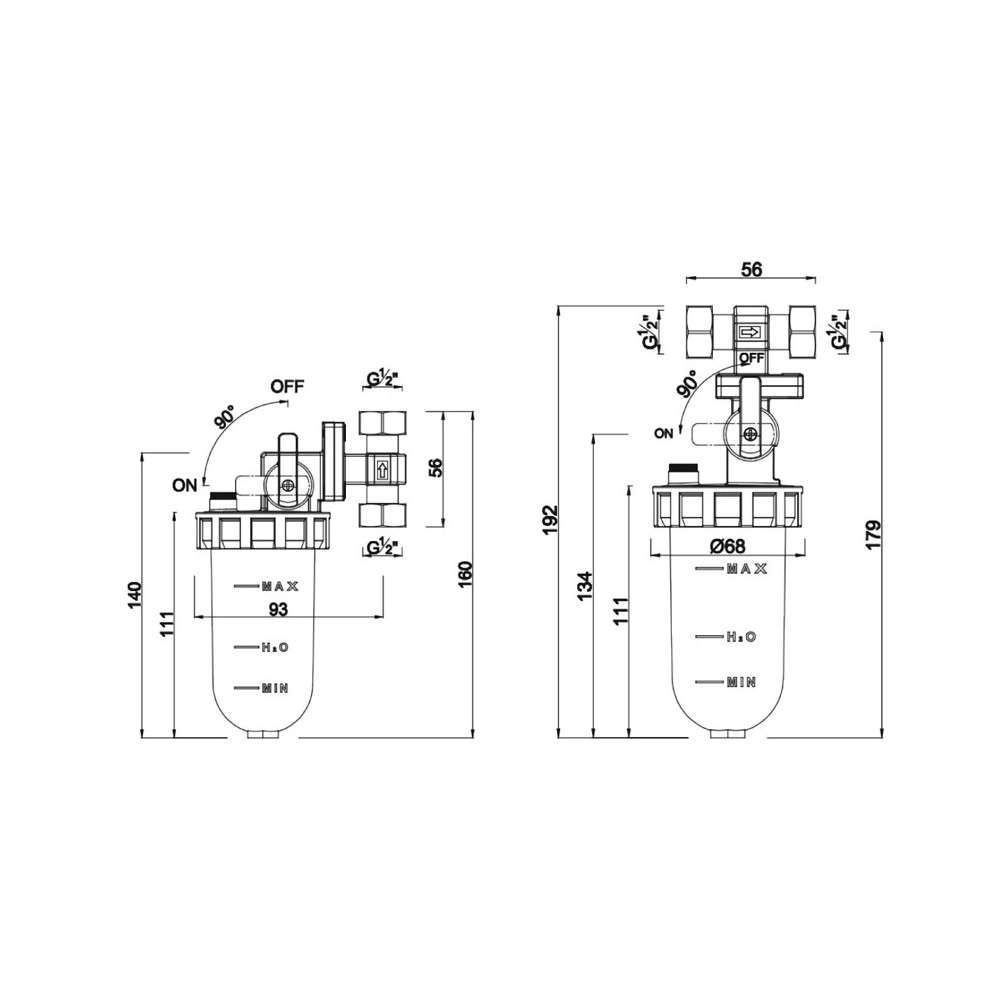

Characteristics:

1. Connection: 1/2 inch
2. Maximum flow: 1.5 m3/h
3. Recommended operating pressure : 3.5 bar
4. Maximum pressure: 28 bar
5. Pressure drop: 0.2 bar
6. Max. water temperature in the filter: 45ºC
7. By powder polyphosphate fillers
8. Autonomy recharge: 20 m3

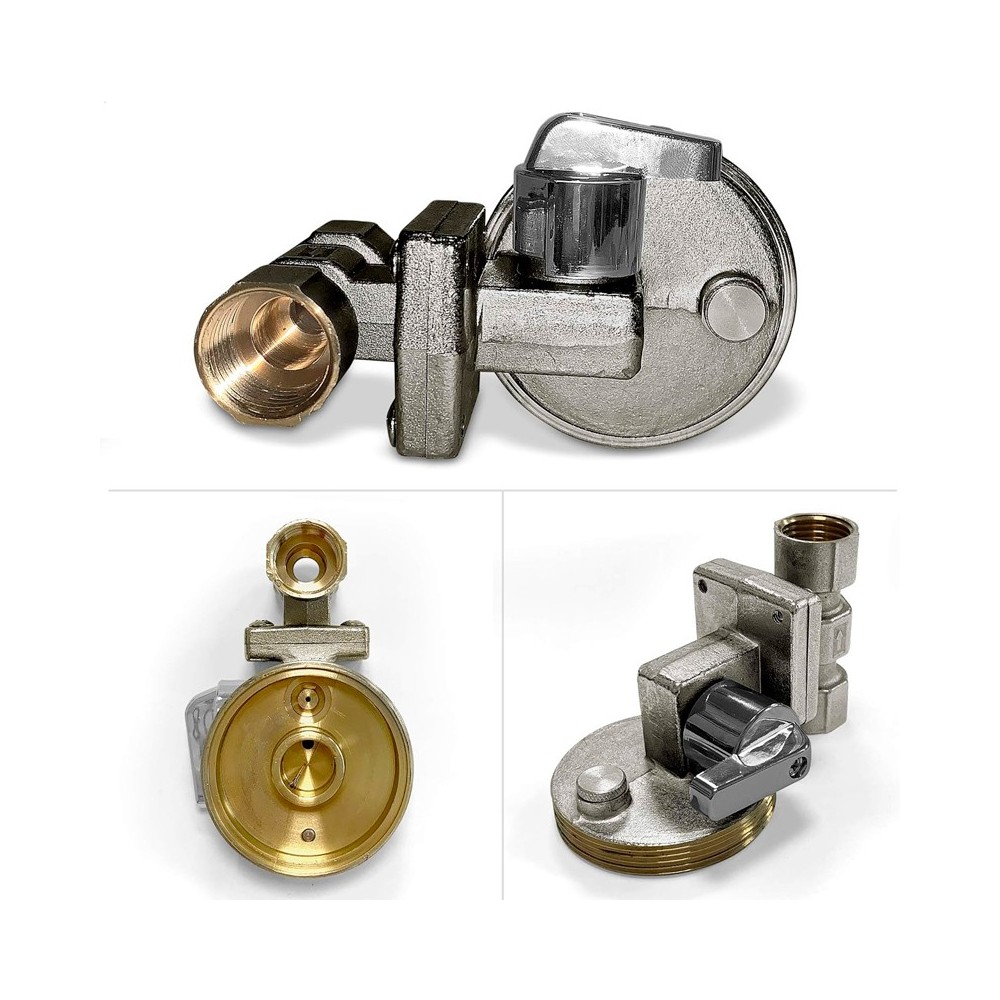

9. MATERIAL Head: Brass Vessel:San
10. Integrated by-pass

Includes:

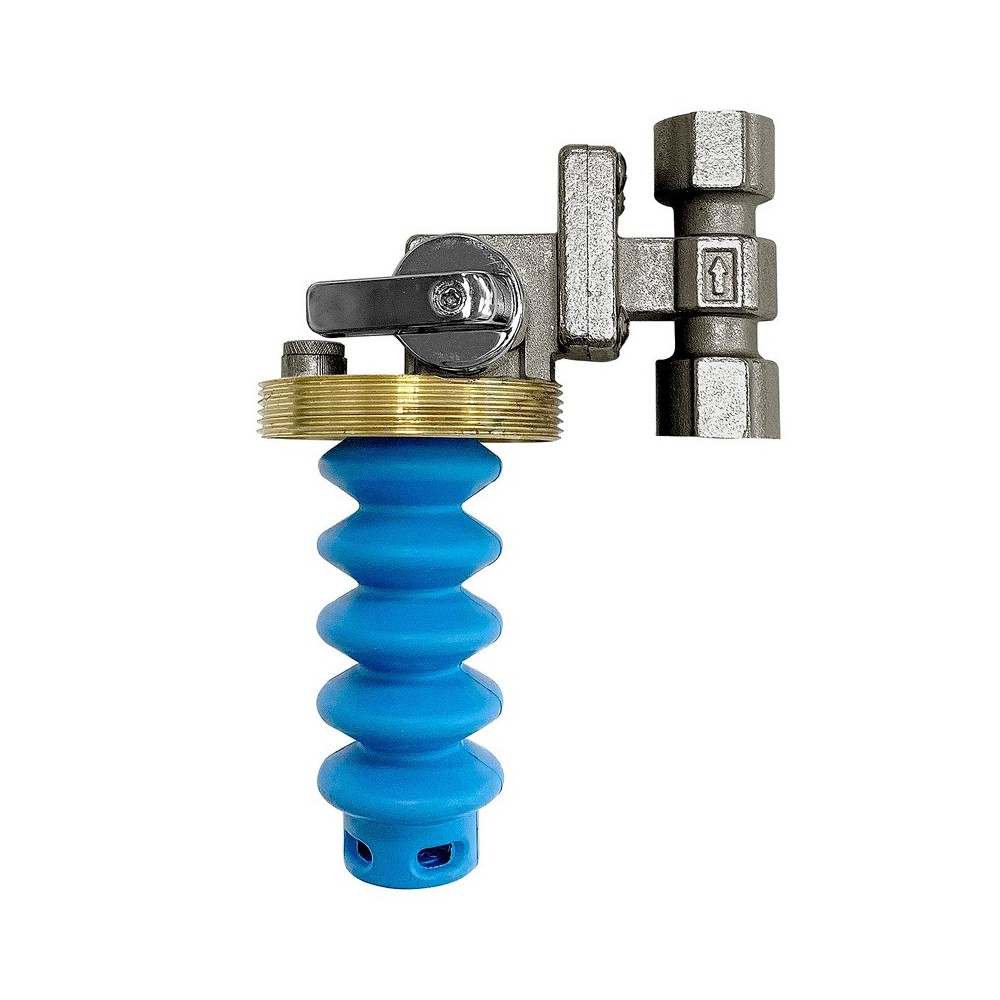

1. Dosing filter with brass head with by-pass and cup
2. Filter operture key
3. 1 Polyphosphate refill
