Total protection kit saves condensing gas boilers

Total protection kit saves condensing gas boilers

Kit formed by the perfect combination for the total protection of condensing gas boilers, composed of three elements and very simple to install and maintain.

Formed by:

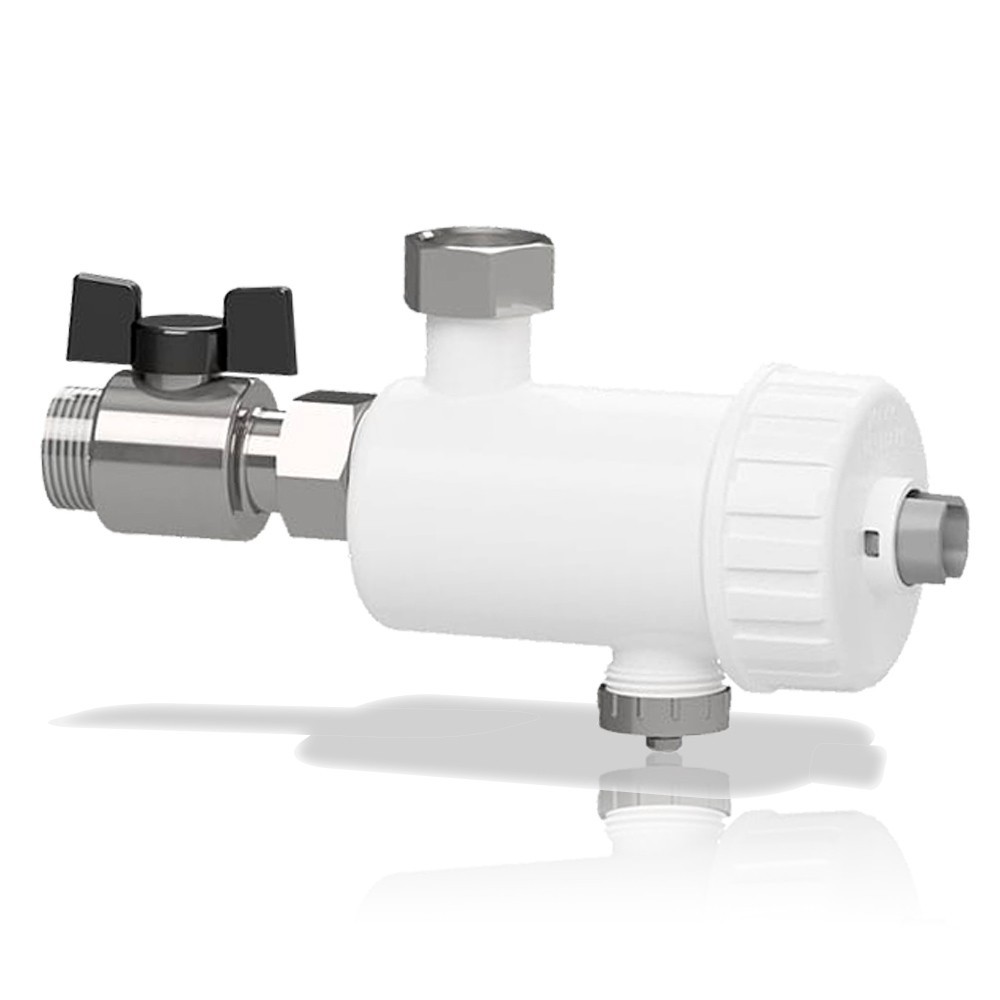

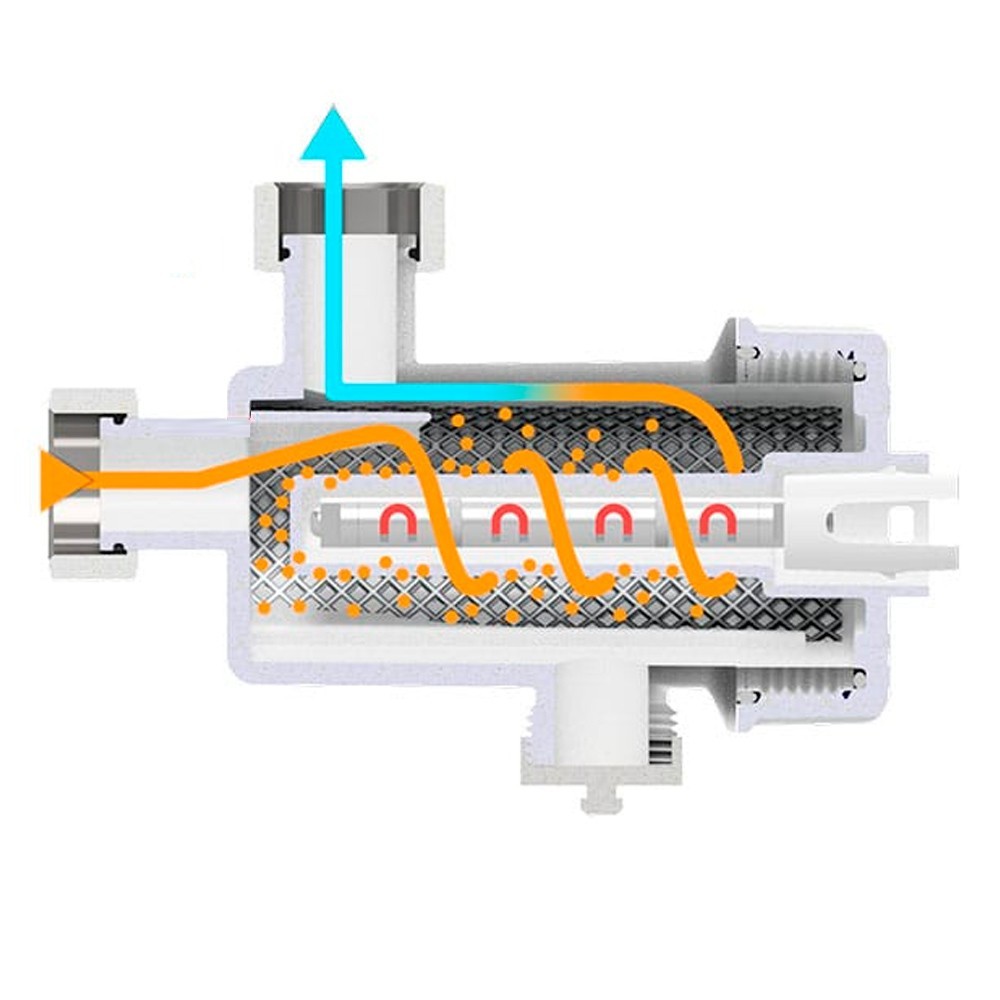

1st Defogger Filter for heating circuit:

Able to eliminate any element suspended in the heating circuit water greater than 800 microns, mainly sludge. Magnetic capacity to trap the internal remains of the circuit that circulate through it. It can be mounted in a vertical and horizontal position, without ever losing effectiveness in protecting the boiler.

Characteristics:

•      Plastic polymer cartridge holder body.
•      AISI 304 stainless steel filter cartridge.
•      Elastomer hydraulic seals.
•      MF UNI-EN-ISO 228 threaded connections.
•      Maximum operating pressure 3 bar
•      Operating temperature 0 ÷ +90 °C
•      Neodymium magnet B = 11000 gauss
•      B(T max) / B(T amb)* < 1%
•      Filtration degree 800 μm

Kit formed by the perfect combination for the total protection of condensing gas boilers, composed of three elements and very simple to install and maintain.

Formed by:

1st Defogger Filter for heating circuit:

Able to eliminate any element suspended in the heating circuit water greater than 800 microns, mainly sludge. Magnetic capacity to trap the internal remains of the circuit that circulate through it. It can be mounted in a vertical and horizontal position, without ever losing effectiveness in protecting the boiler.

Characteristics:

•      Plastic polymer cartridge holder body.
•      AISI 304 stainless steel filter cartridge.
•      Elastomer hydraulic seals.
•      MF UNI-EN-ISO 228 threaded connections.
•      Maximum operating pressure 3 bar
•      Operating temperature 0 ÷ +90 °C
•      Neodymium magnet B = 11000 gauss
•      B(T max) / B(T amb)* < 1%
•      Filtration degree 800 μm

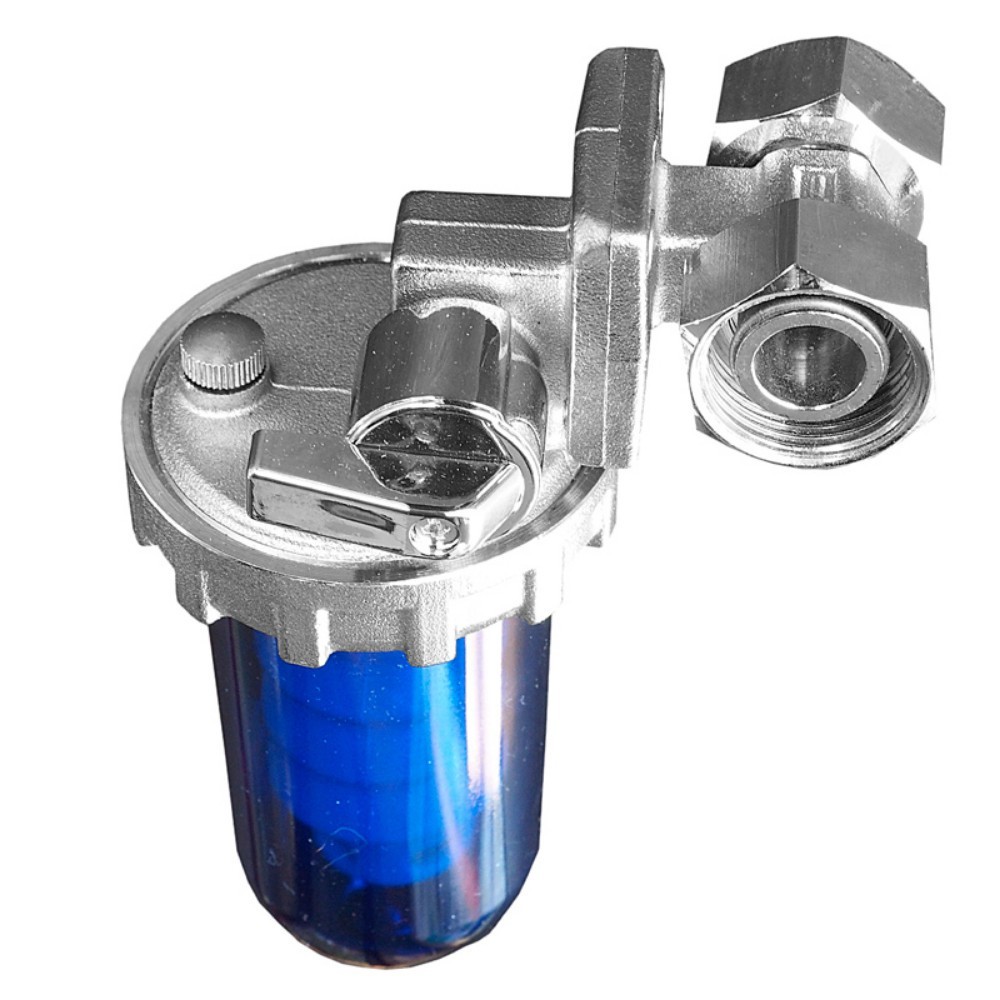

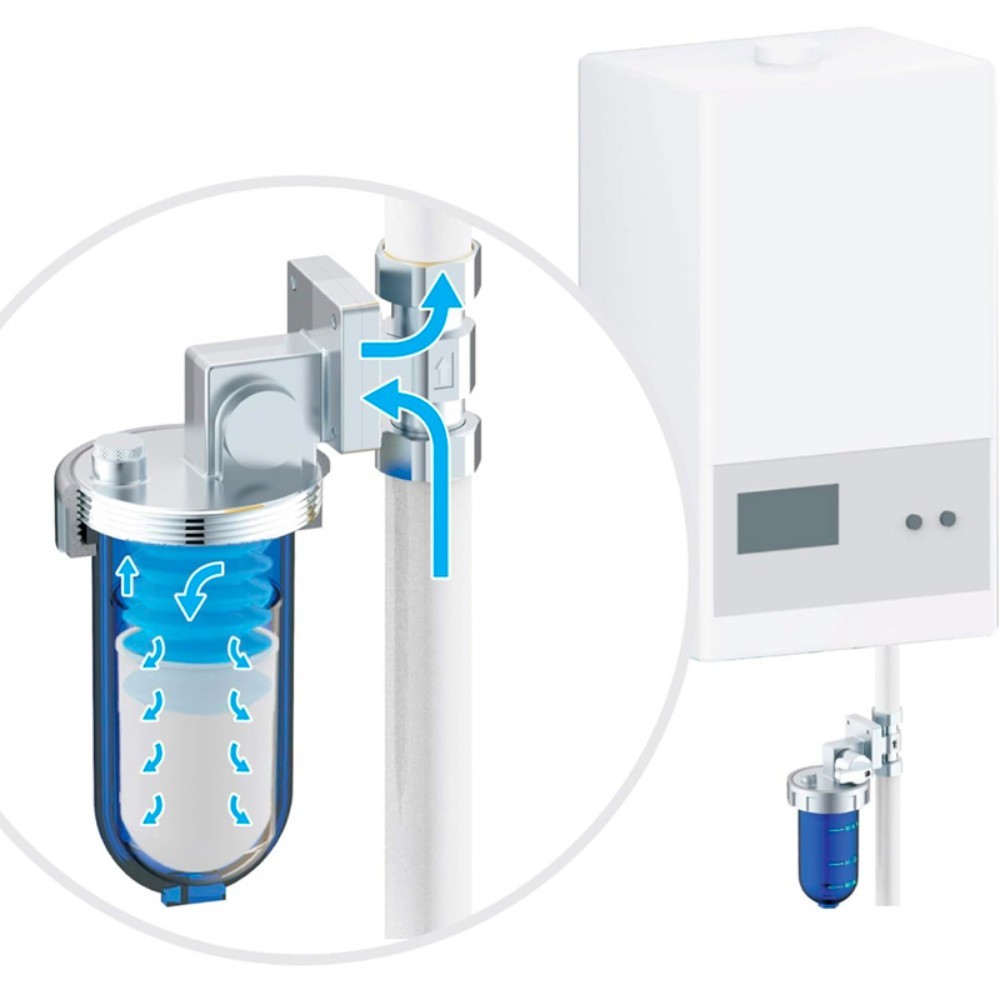

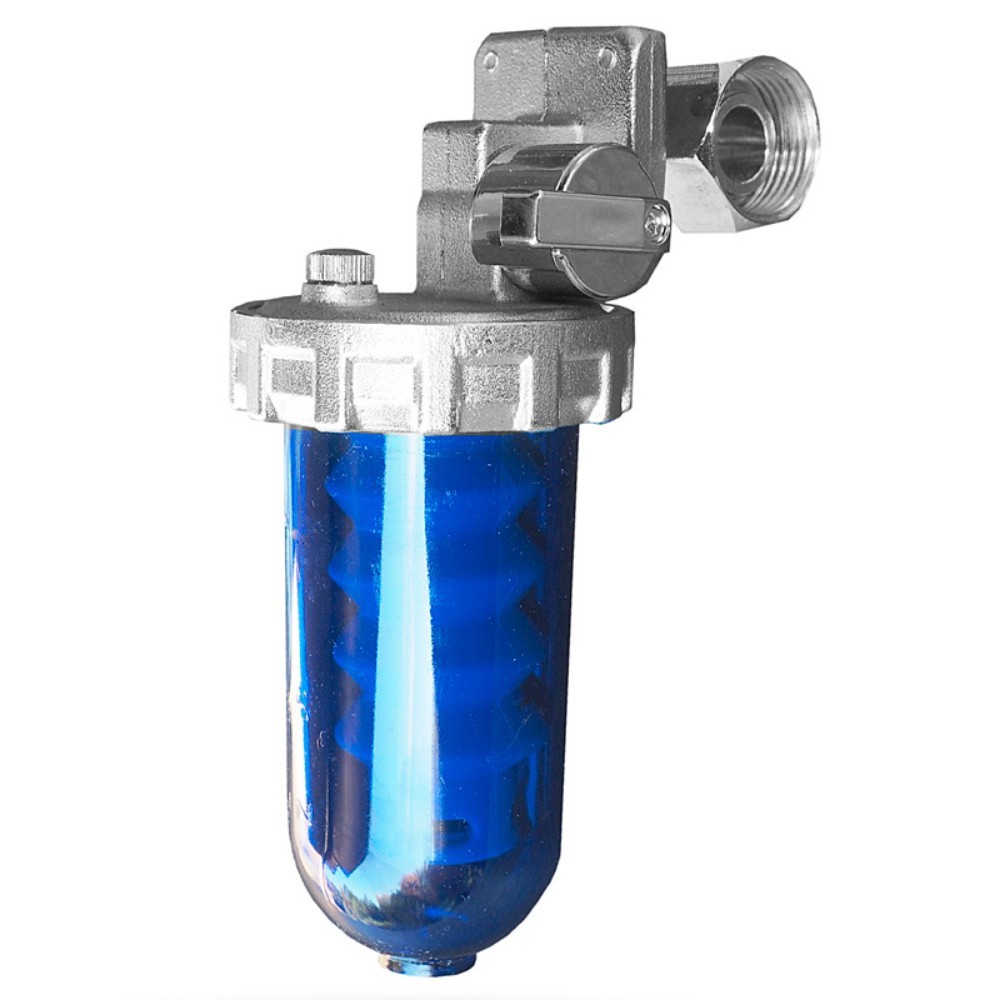

2nd Proportional silicopolyphosphate powder dispenser

The most effective system to protect against limescale and water corrosion in gas boilers.

How does it work

The proportional dosing system is an accurate and reliable system for dosing the correct proportion of polyphosphates to achieve effective action.

Through the venturi effect, polyphosphates are added to the water proportionally regardless of the flow rate of the water.

Guaranteeing not to exceed the amount of 5mg/l recommended for human consumption

Characteristics:

•      Connection: 1/2 inch
•      Maximum flow: 1.5 m3/h
•      Recommended operating pressure: 3.5 bar
•      Maximum pressure: 28 bar
•      Pressure drop: 0.2 bar
•      Max. water temperature in the filter: 45ºC
•      Using powdered polyphosphate loads
•      Recharge autonomy: 20 m3
•      MATERIAL Head: Brass Glass:San
•      Integrated bypass

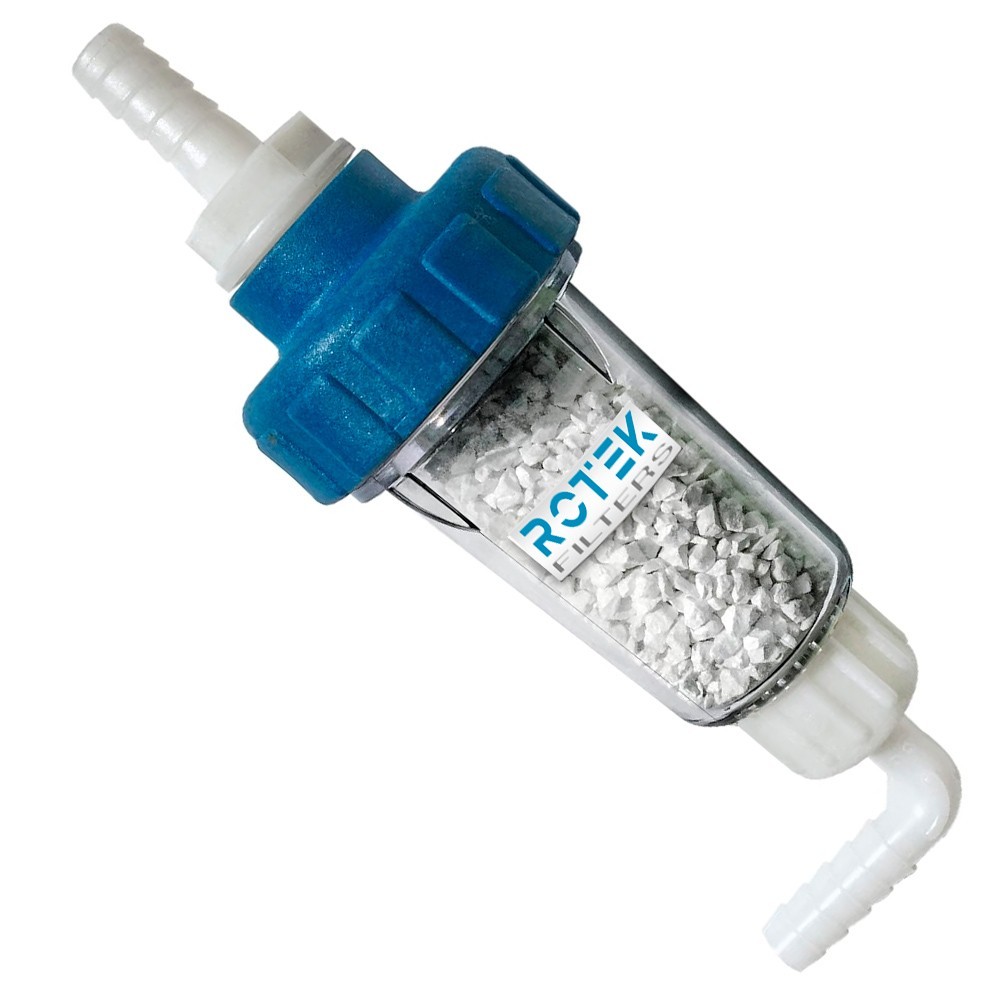

3rd Condensate Neutralizing Filter for gas boiler

Condensate neutralizer for gas boilers and thus increase the pH of boiler condensate, which is very acidic and can damage the domestic and/or public evacuation line. Condensates pass through the remineralizing granules to raise the pH. The granules will dissolve gradually.

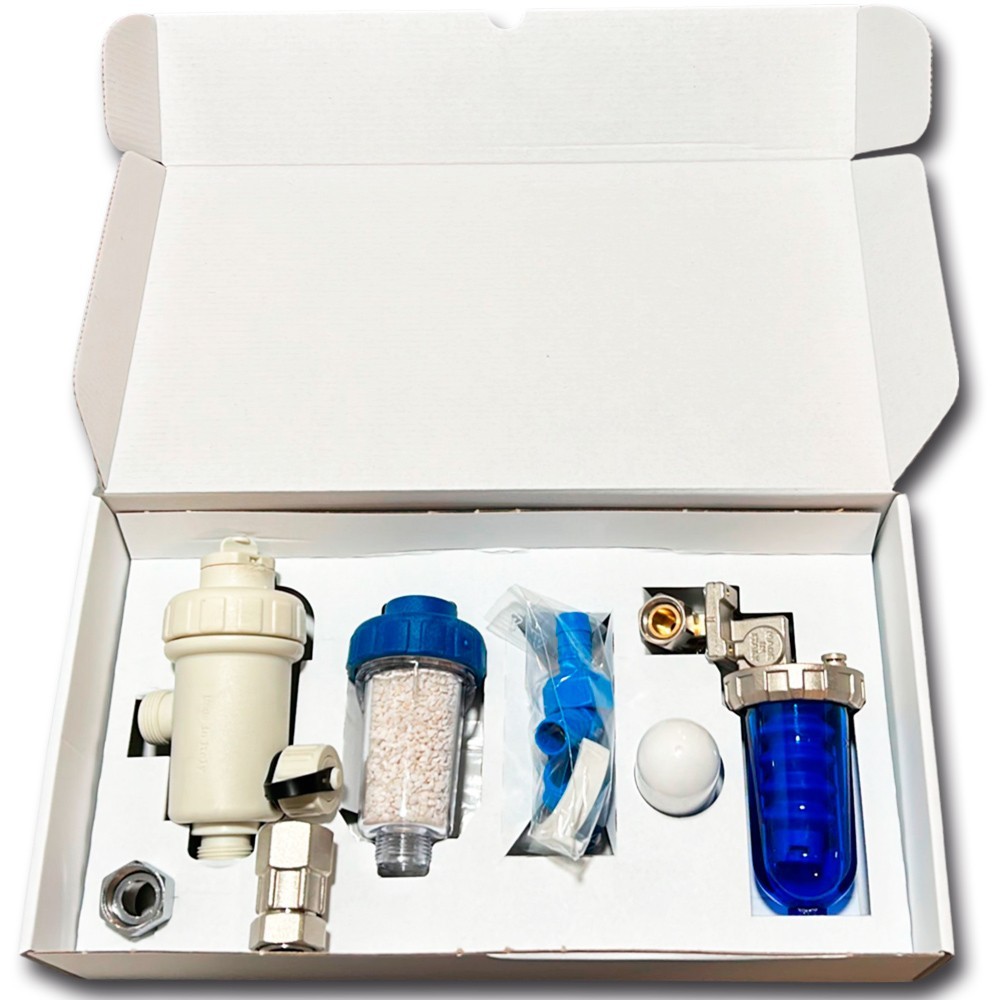

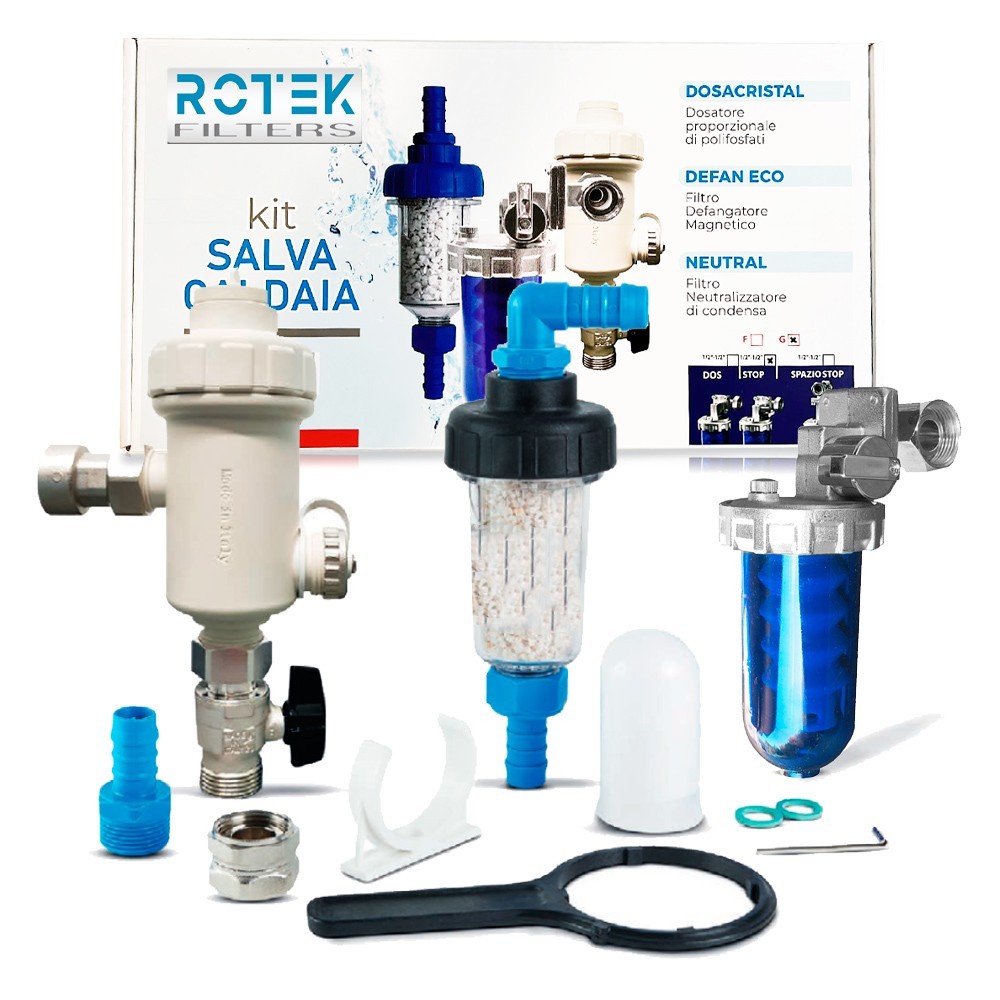

Includes:

     Defogger filter for heating circuit
     Dosing filter with brass head with by-pass and glass
     Filter opening wrench
     1 Polyphosphate recharge
     Condensate neutralizer filter for gas boiler

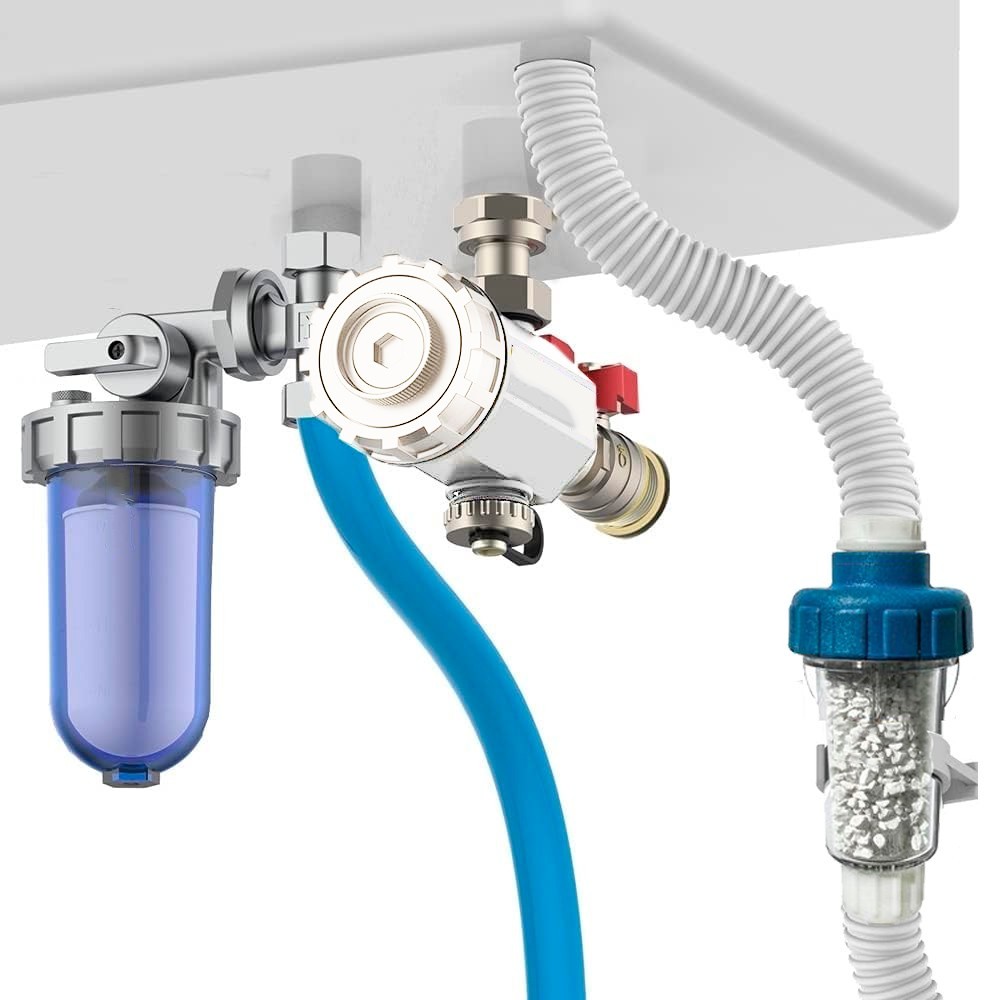

Easy installation

The 3 components of the kit come prepared for installation in a very simple way, unscrewing the connection hose from each outlet and screwing on the specific filter.
