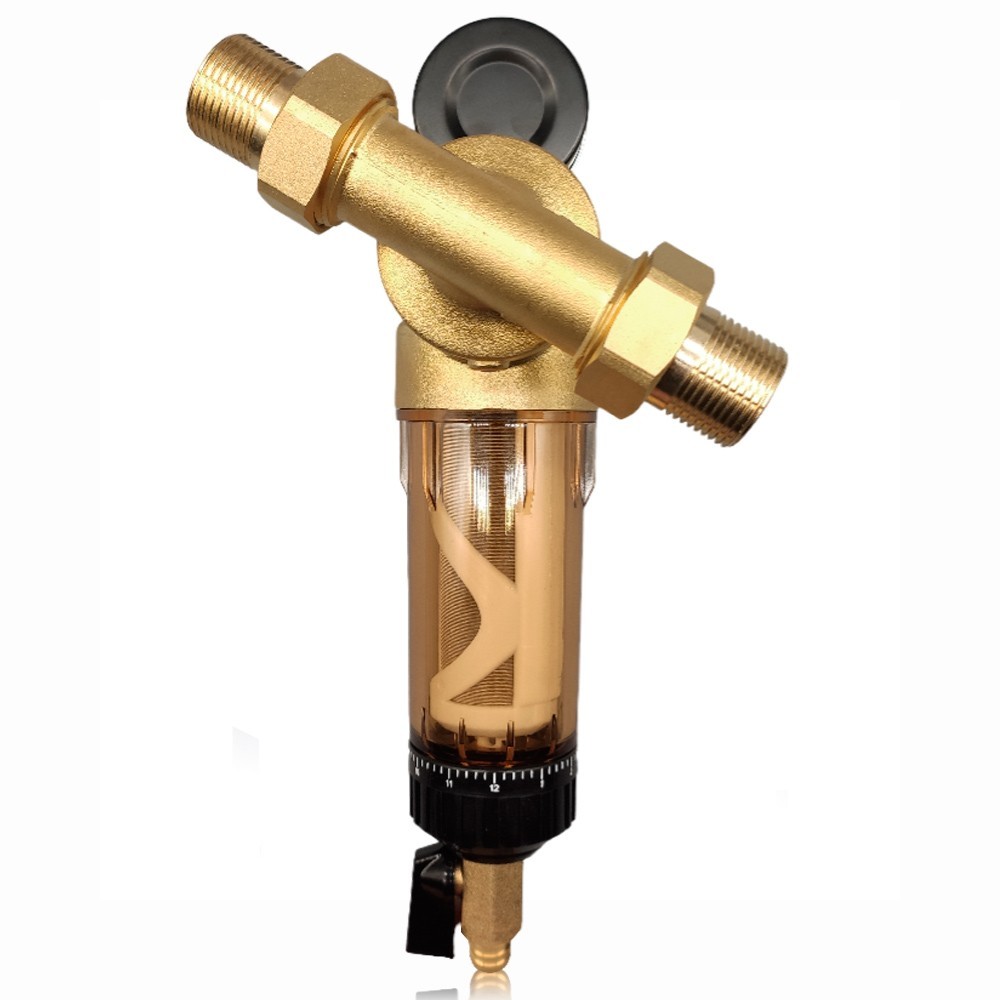

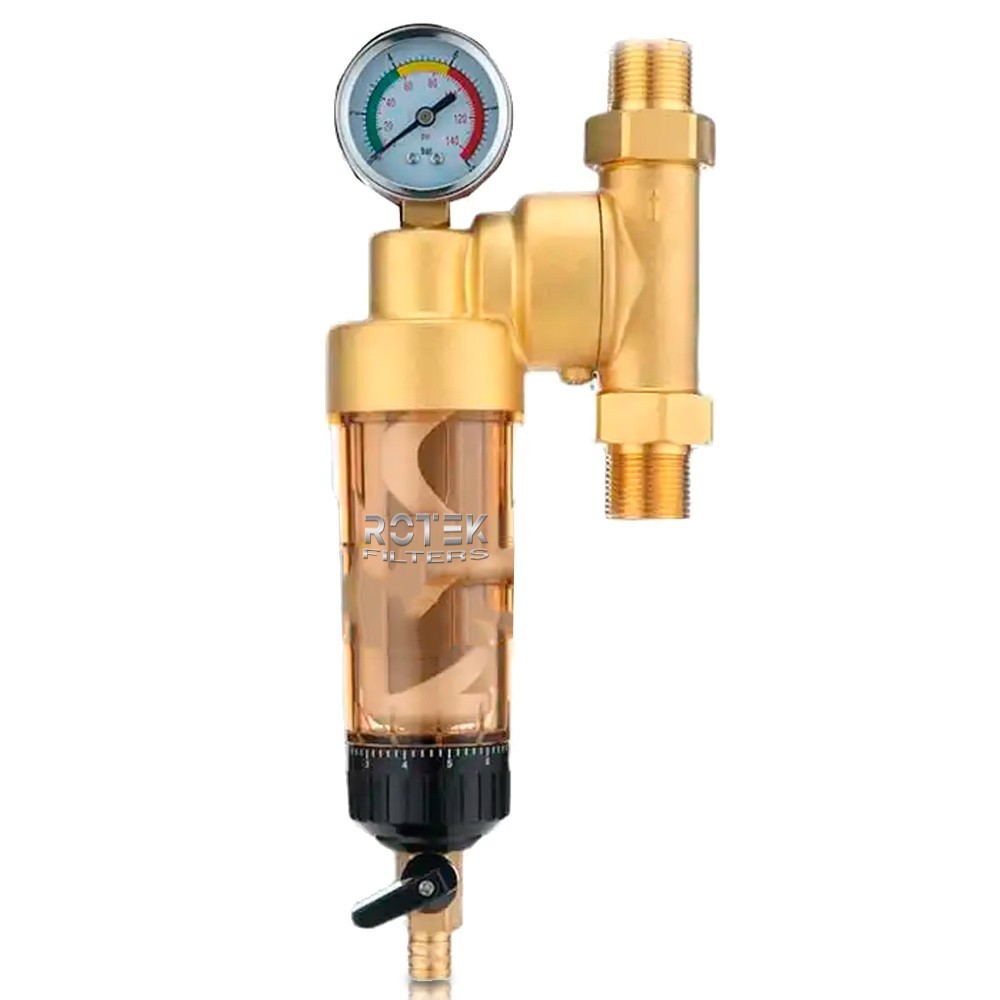

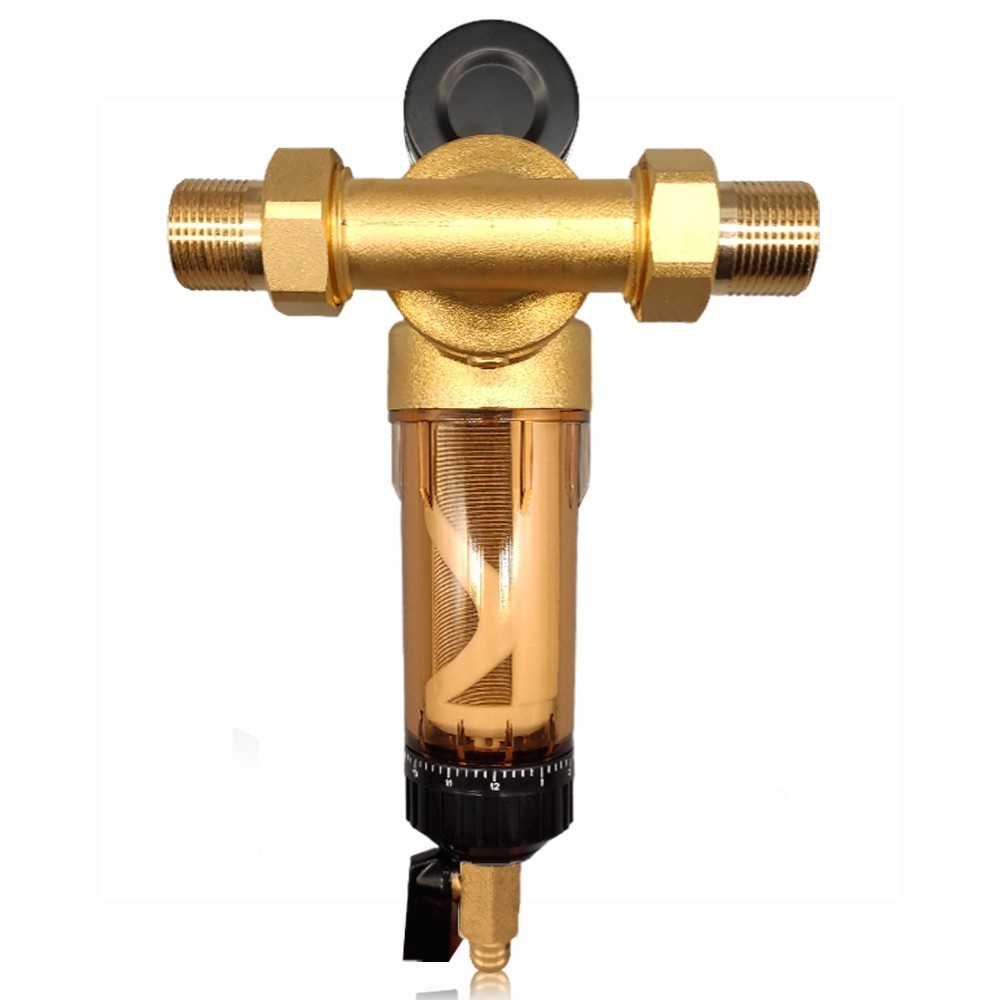

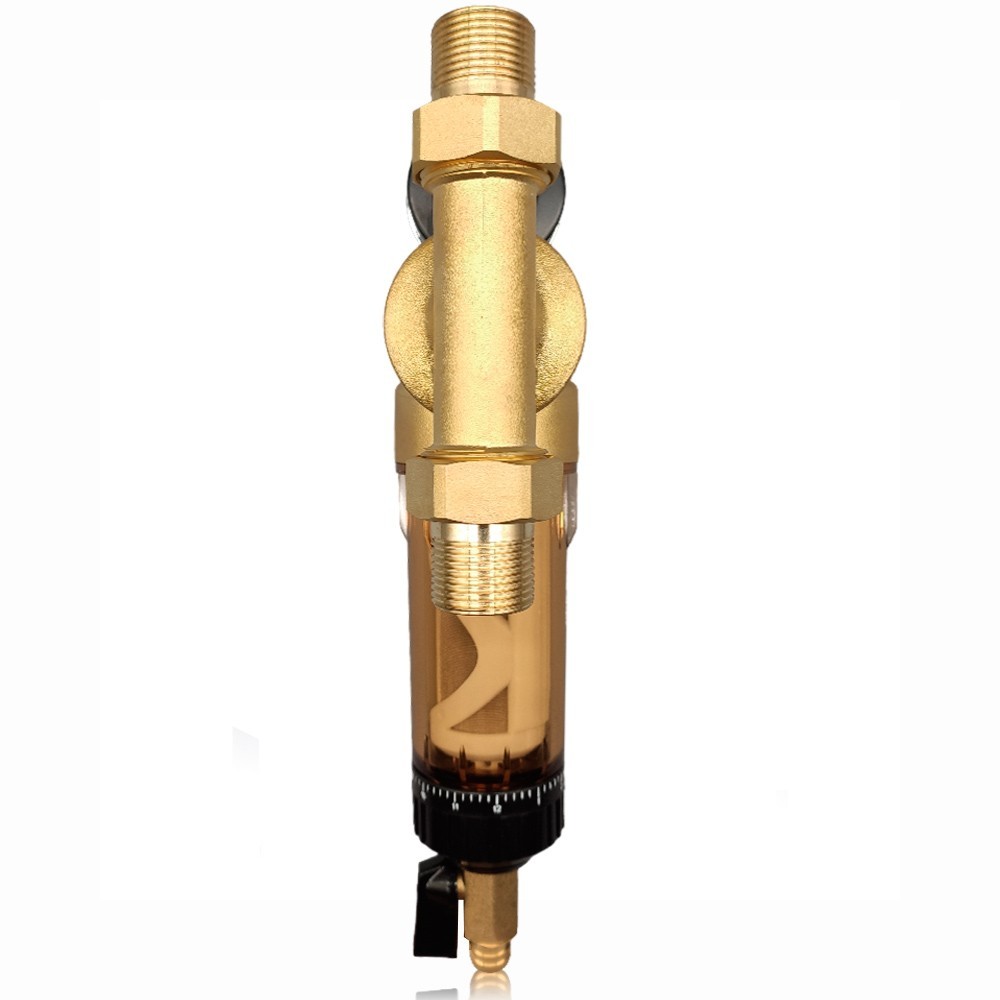

Pre-water filter with high flow pressure gauge and centrifugal washing valve, 360º installation

Pre-water filter with high flow pressure gauge and centrifugal washing valve, 360º installation.

With washable 40 micron stainless steel mesh filter. Complete water filtration kit.

For the elimination of elements suspended in the water at the entrance to the house or garden.

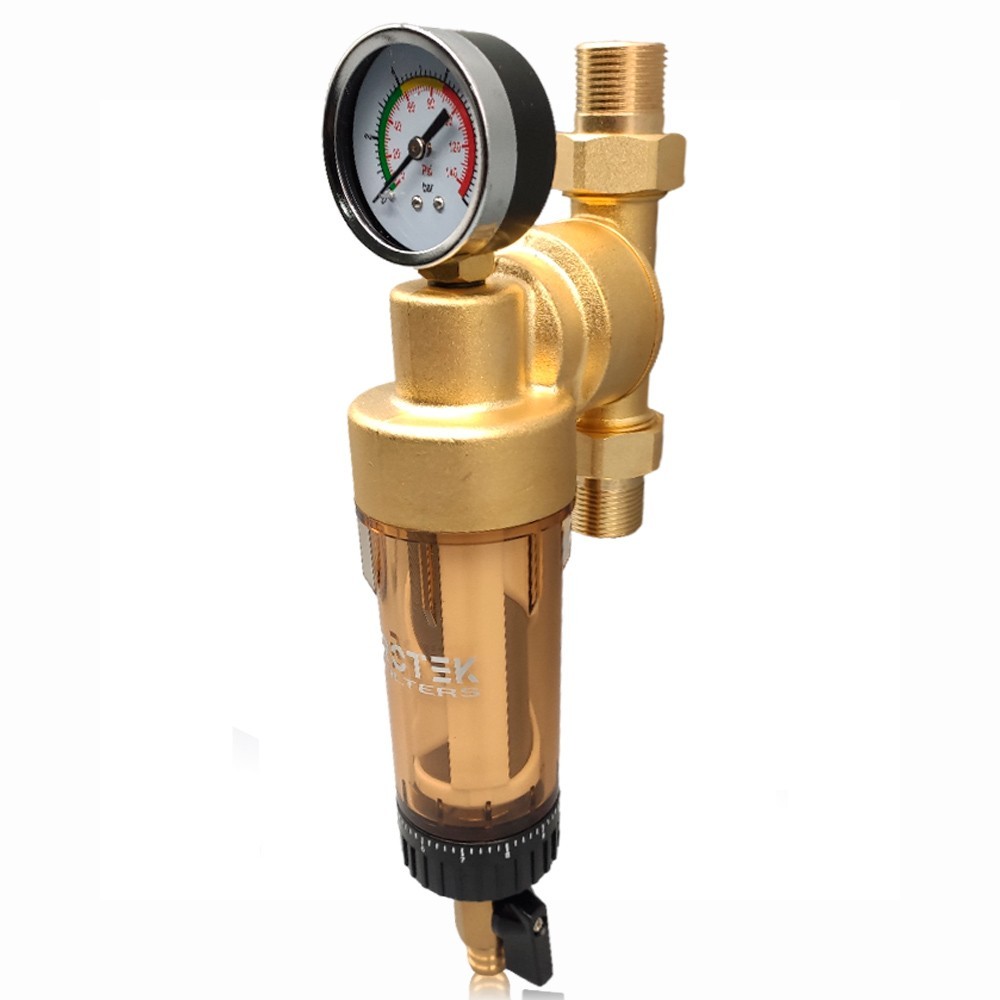

Installation possible in any 360º position since it is possible to rotate the inlet and outlet to the filter 360º.

It has a valve for centrifugal washing and drainage through a lower hose-type connection outlet.

Characteristics:

•      Semi-automatic centrifugal washing by rotating valve
•      360º installation.
•      Glass with extra protection of darkened color to avoid bacteriological proliferation due to solar action.
•      Hose type connection drain.

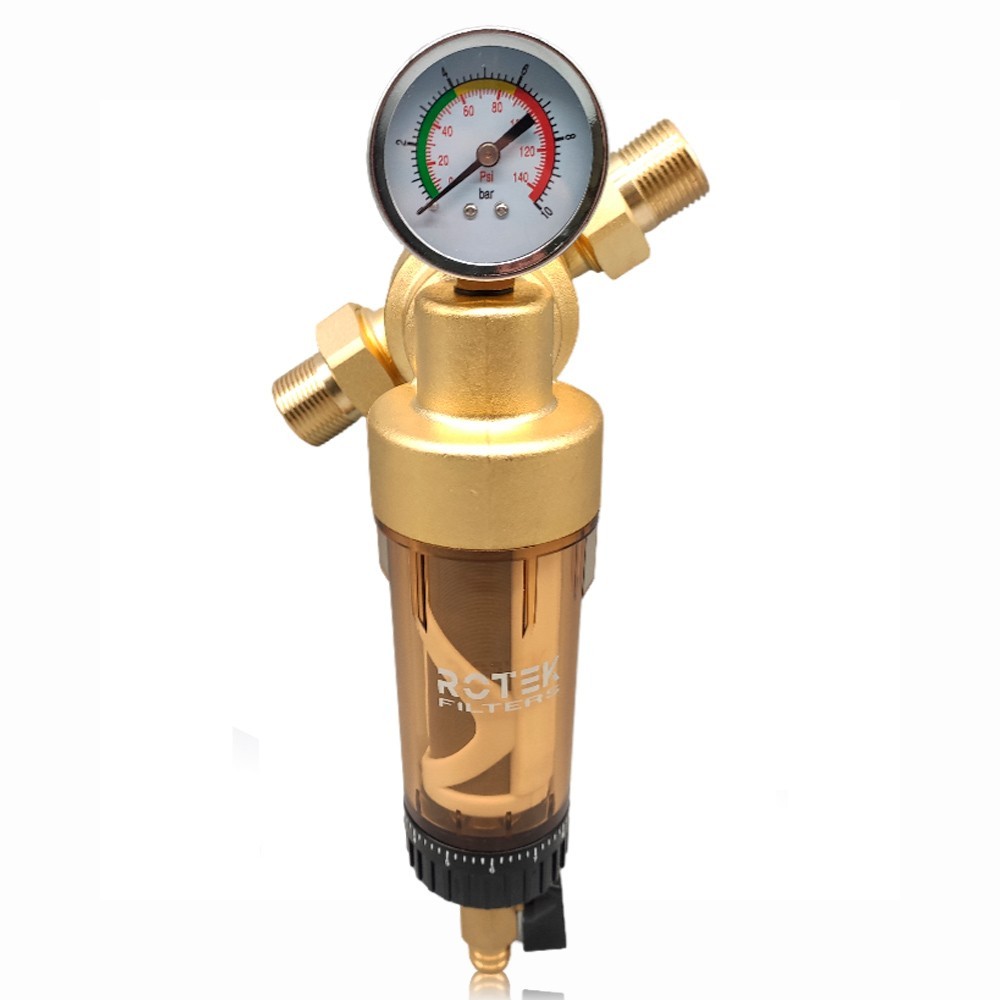

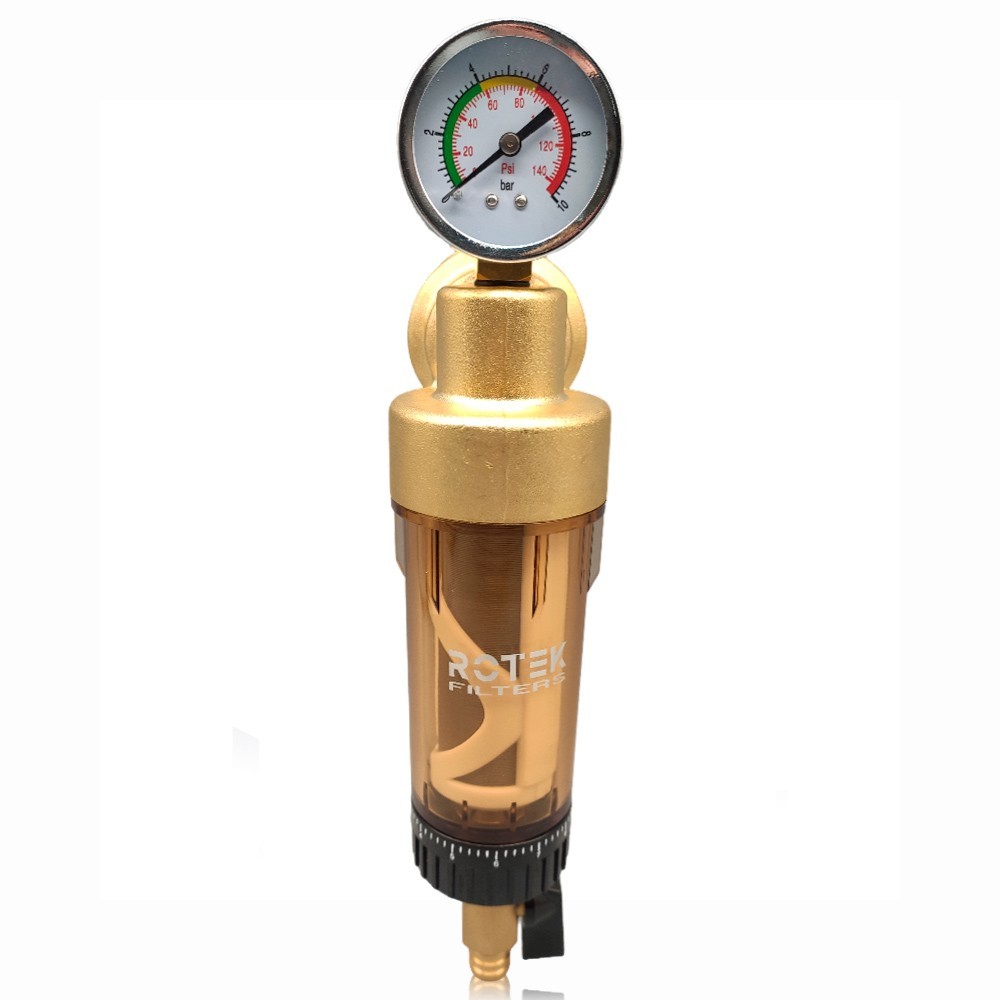

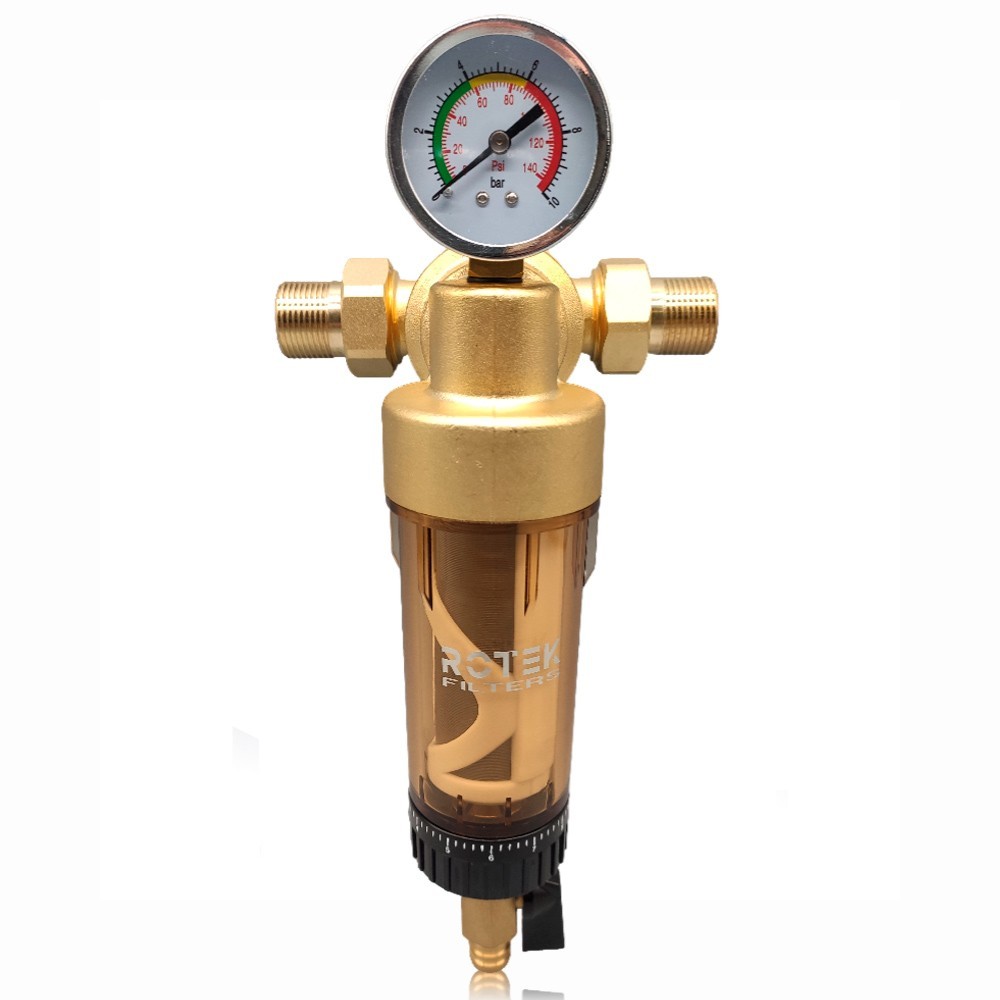

•      Built-in upper pressure gauge.
•      1" or 3/4" male brass connection.

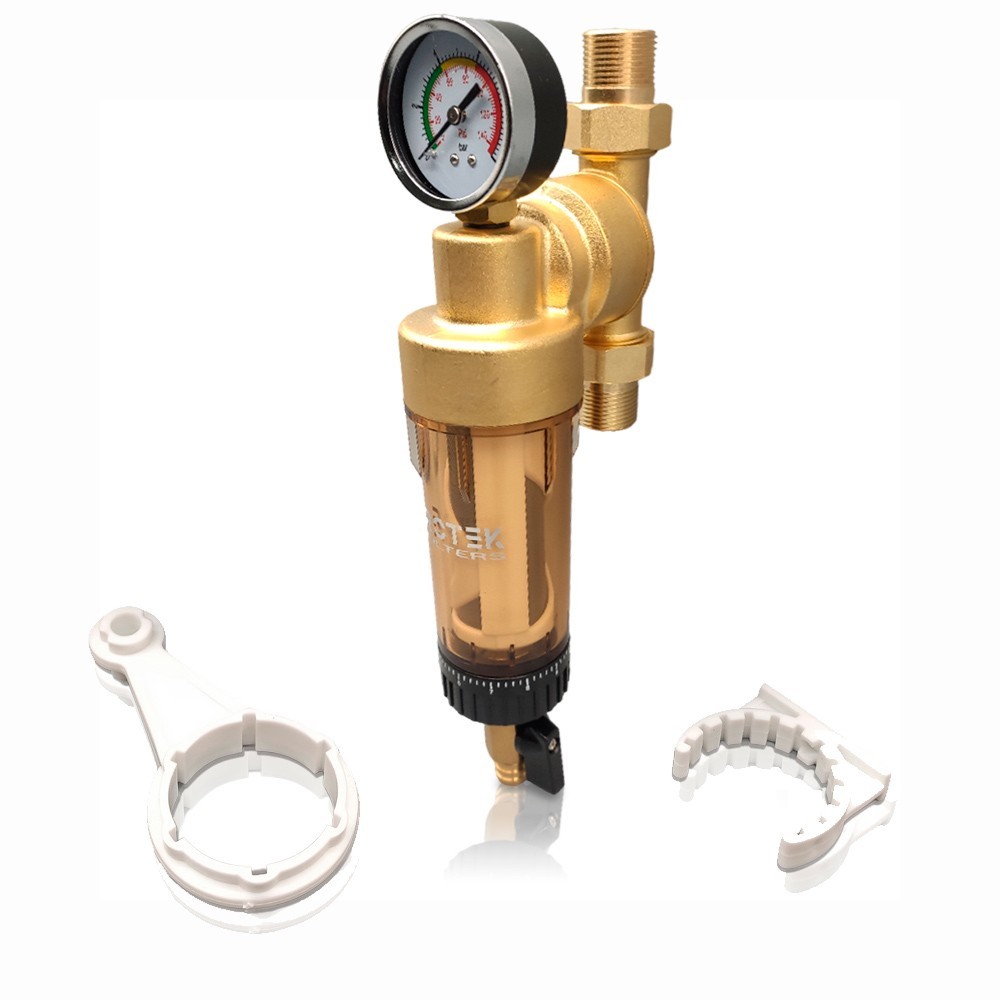

•      Plastic bracket and mounting accessories included for wall mounting.
•      Cup disassembly wrench.
•      Maximum operating pressure 10 bar.
•      Maximum flow 4200 lph.
•      Fine brass head 59.
•      High resistance transparent propylene glass.
•      Stainless filter, washable through the upper valve opening and manually removing it.
•      Product size: 215x90mm

  ROHS, SGS, FDA Quality Seals
